■ Adopt mature conventional cnc milling machine structure, good stability.

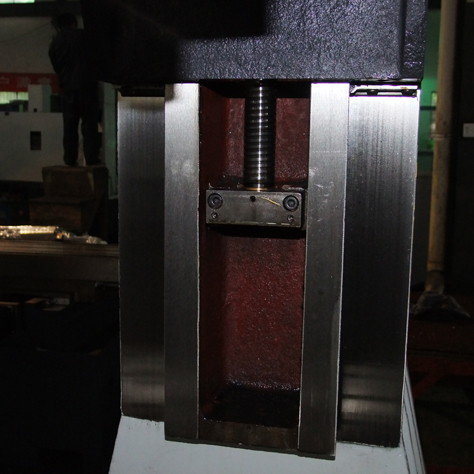

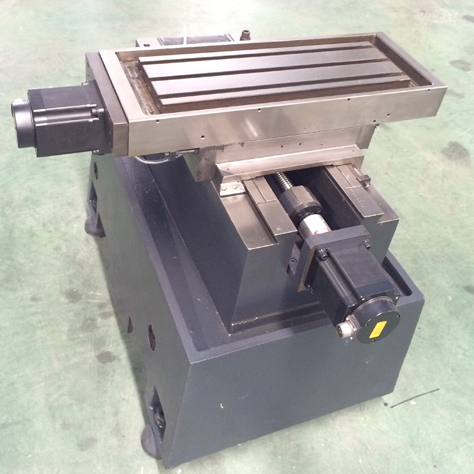

■ SWALLOW-TAIL shape HARD guideway
■ Without tool magazine
|
Item
|
Specification
|
Unit
|
BL-Y25
|
|

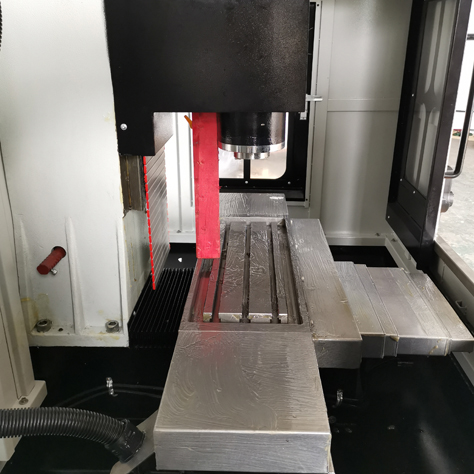

Worktable
|
Table size
|
mm
|
700×260
|
|
T slot(NO./width/gap)
|
mm
|
3/14/63
|
|
X/Y/Z axes
|
X/Y/Z axes travel
|
mm
|
400/250/280
|
|
X/Y/Z axes ball screw(dia./pitch)
|
mm
|
32/6
|
|
Cutting feeding speed
|
m/min
|
6~10
|
|
Rapid moving speed
|
m/min
|
15
|
|
Positioning precision
|
mm
|
±0.01
|
|
Repeatable positioning precision
|
mm
|
±0.008
|
|
Spindle
|
Max. distance from spindle nose to worktable surface
|
mm
|
380
|
|
Distance from spindle center to column surface
|
mm
|
250
|
|
Spindle type
|
/
|
BT40
|
|
Spindle motor
|
kw
|
2.2(inverter)
|
|
Spindle speed
|
rpm
|
6000
|
|
Tool magazine
|
Tool magazine type
|
/
|
N/A
|
|
Others
|
Overall size(Half closed cover)
|
mm
|
1510×1200×2010
|
|
Overall size(Full closed cover)
|
1760×1840×2010
|
|
N.W.(Half/Full closed cover)
|
kg
|
1300/1500
|
|
Item
|
Brand
|
|
Ball screw bearing
|
CHINA top-HRB P4 class/Z axes NSK
|
|
Ball screw
|
CHINA top
|
|
Dishing spring
|
GERMANY
|
|
Spindle unit
|
TAIWAN
|
|
Inveter
|
TAIWAN TECO/JAPAN YASKAWA
|
|
Booster cylinder
|
TAIWAN
|
|
Pneumatic parts
|
TAIWAN-AIRTAC
|
|

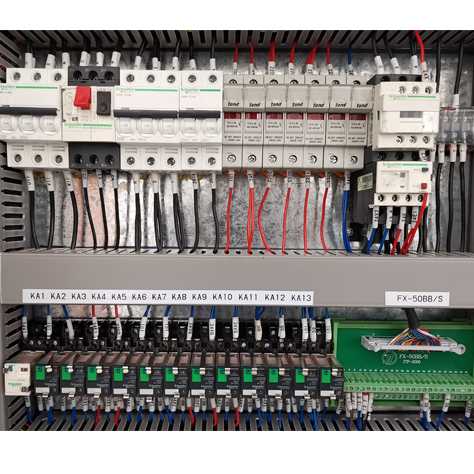

Electricity parts
|
FRANCE-SCHNEIDER
|
|
Lubrication pump
|
Joint-venture
|
Standard configuration:

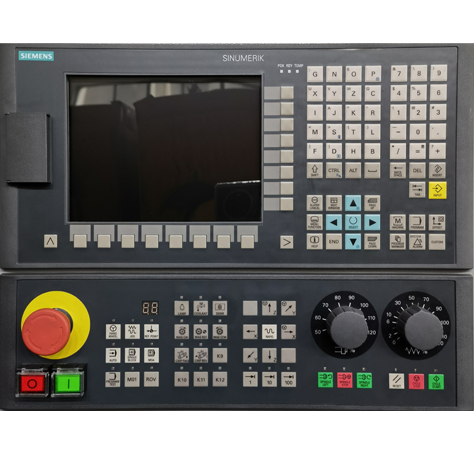

● SIEMENS 808D ADVANCED CNC controller

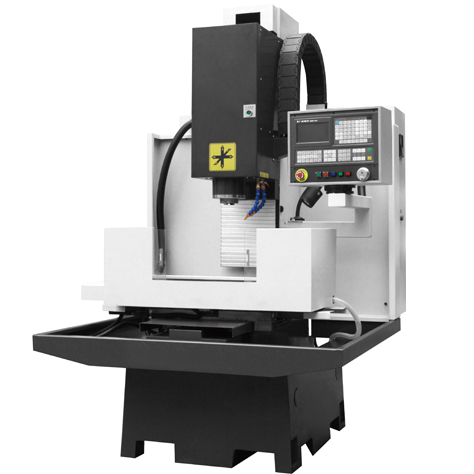

● Half closed cover
Optional configuration:
● GSK980MD CNC Controller
● Stepper motor

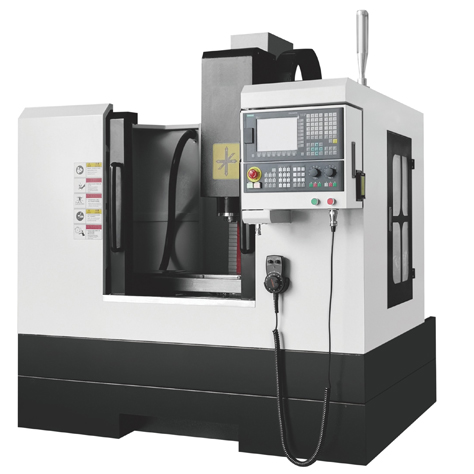

● Full closed cover
● 4th axes rotary table
