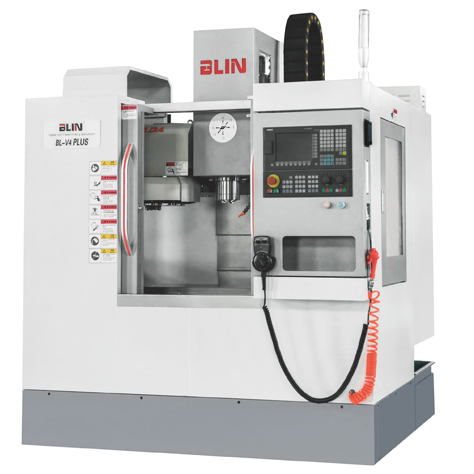

BL-V4 PLUS
■ GERMAN technology
■ TAIWANESE quality
■ Linear guideway
■ 12T/16T tool magazine

  • FEATURES
  • SPECIFICATION
  • MAIN PARTS LIST
  • CONFIGURATION

■3 axes adopt high precision linear guideway
■Designed by GERMAN engineer
■Whole production process accord to TAIWANESE standard

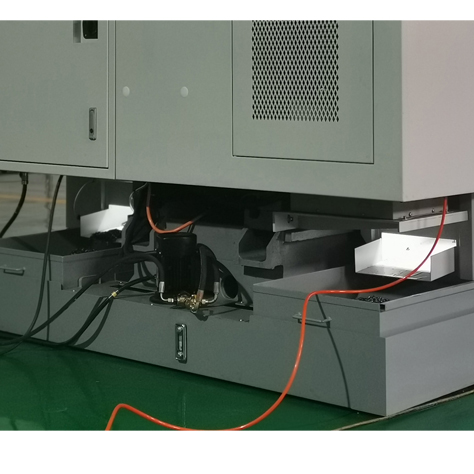

■Chips outlet set at the back of machine
■Most parts adopt GERMAN/JAPANESE/TAIWANESE brand
■High speed, high precision, long using lifespan

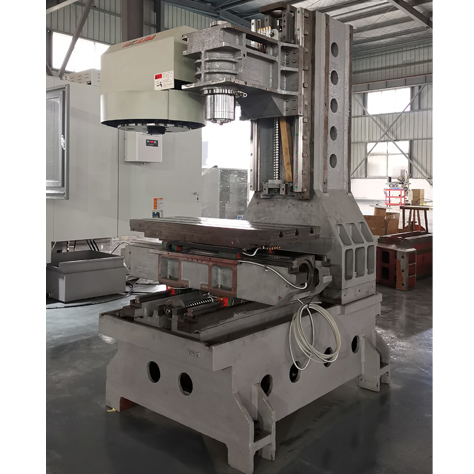

■Adopt HT300 high class cast iron,after aging treatment and FEA analysis
■Bridge shape column, high rigidity, high stability
■3 axes use C3 class precision ball screw, match up nut preloading and ball screw pre-stretching, pre-eliminate backlash and temperature rising, ensure stable positioning and repeatable positioning precision

Item

Specification

Unit

BL-V4 PLUS

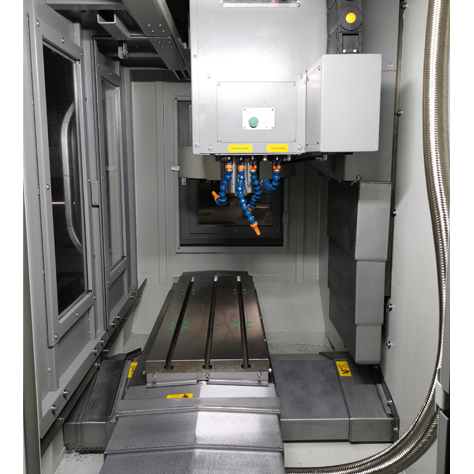

Worktable

Table size

mm

800×320

Table max. loading

kg

200

T slot(NO./width/gap)

mm

3/14/100

Travel

X/Y/Z axes

mm

450/300/480

Spindle

Distance from spindle nose to table surface

mm

105~585

Distance from spindle center to column surface

mm

375

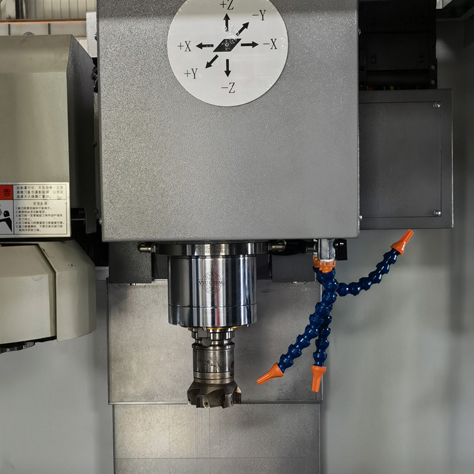

Spindle type

mm

BT40/Φ120 7:24

Spindle motor

kw

3.7(option:5.5kw)

Spindle speed

rpm

Belt-drive: 8000/10000

Direct-drive: 12000

Feeding axes

X,Y,Z axes ball screw O.D./pitch

mm

32/12

X,Y,Z axes linear guideway width

mm

30

X/Y/Z axes motor

Nm

6/6/11(SIEMENS 808D)

Cutting feed speed

m/min

12

X/Y/Z axes rapid moving speed

m/min

36/36/24

Positioning precision

mm

±0.005

Repeatable positioning precision

mm

±0.003

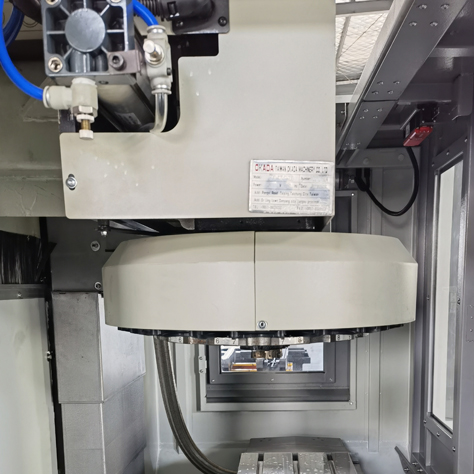

Tool magazine

Tool magazine

/

Umbrella type 12T/Arm type 16T

Max. tool weight

kg

8(Arm type 16T)

Max. tool length

mm

220(Arm type 16T)

Max. tool dia.(fully loaded)

mm

78(Arm type 16T)

Max. tool dia.(no adjacent)

mm

120(Arm type 16T)

Others

Overall dimension(L×W×H)

mm

1830×1870×2120

Weight

kg

2400


Item

Brand

Spindle bearing

JAPAN-NSK

Ball screw bearing

TAIWAN-TPI

Ball screw

JAPAN-THK/TAIWAN-HIWIN

Linear guideway

JAPAN-THK/TAIWAN-HIWIN

Spindle unit

TAIWAN-VYU CHEN

Tool magazine

TAIWAN-OKADA

Booster cylinder

TAIWAN-HAO CHENG

Lubrication pump

TAIWAN-BEISUN

Power switch

TAIWAN-MEANWELL

Pneumatic parts

TAIWAN-AIRTAC

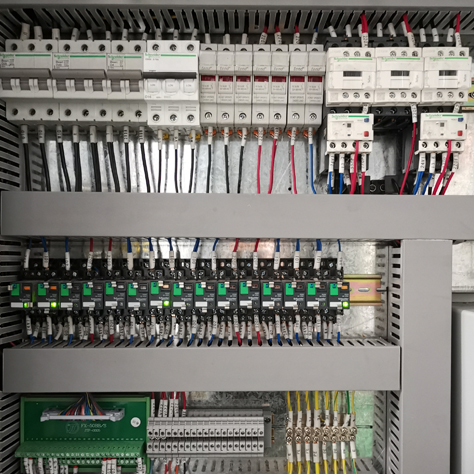

Electric parts

                  FRANCE-SCHNEIDER


Standard configuration:
●SIEMENS 808D ADVANCED CNC controller
●12T Umbrella type tool magazine

Optional configuration:
●SIEMENS 828D/FANUC 0I MF/GSK218MC
●16T Arm type tool magazine
●4th axes rotary table
●5th axes
