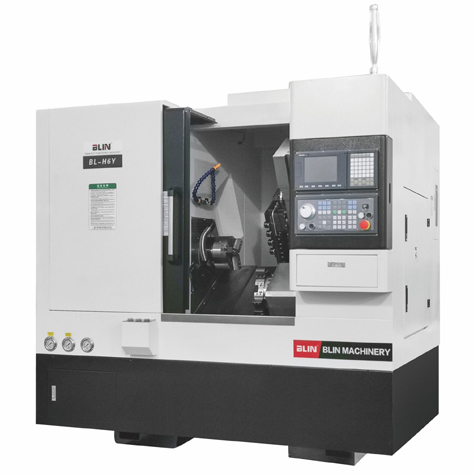

BL-H6Y
■ H STANDARD Series
■ TAIWAN technology
■ 6''/8'' collet chuck
■ 8T tool turret &4+4 Live tool with Y axes
■ Without tailstock

  • FEATURES
  • SPECIFICATION
  • MAIN PARTS LIST
  • CONFIGURATION
■ Adopt TAIWAN technology, most parts adopt GERMANY/TAIWAN brand
■ Adopt 30°mono-block slant bed design,super-heavy bed, high stability
■ Adopt modularization design, easy for various especial configuration choice, such as parts catcher etc
■ Adopt MEEHANITE class cast iron, after aging treatment, small distortion, good torsional strength, good heat stability
■Base adopt multilayer strengthening rib, ensure bed’s strength and stability
■Adopt high precision integral spindle unit, spindle motor adopt high performance servo motor, big output torque,
high speed,wide adjustment range
■Adopt high precision C3 class pre-stretched ball screw(double nuts), coupled with feeding motor directly by linkager, no gap,
high transmission rigidity

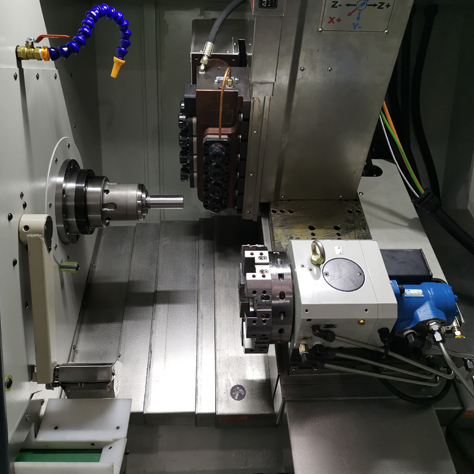

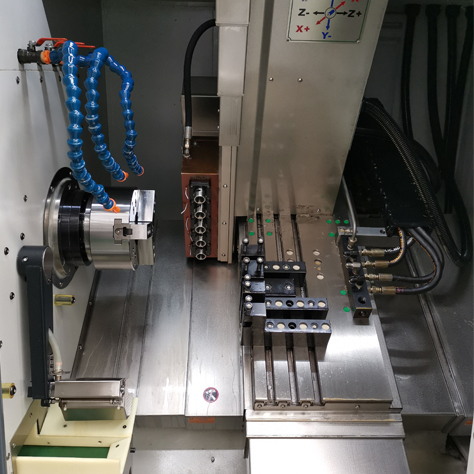

■ Mount 8T hydraulic tool turret and 4+4 Independent live tools with Y axes

Item

Specification

Unit

BL-H6Y

Capacity

Collet chuck size

/

6’’

8’’

Max. swing dia. over bed

mm

Φ350

Max. turning length

mm

250

Max. turning dia.

mm

Φ200

Standard turning dia.

mm

Φ150

Spindle

Spindle bore

Mm

Φ56

Φ66

Spindle end type

/

A2-5

A2-6

Spindle speed

rpm

4500

4000

Max. bar through dia.

mm

44

51

Spindle motor power

kw

11

X/Z axes

X/Y/Z axes linear guideway width

mm

30/30/30

X,Y,Z axes ball screw O.D./Pitch

mm

Φ32/10,Φ25/10,Φ32/10

X axes travel

mm

350

Y axes travel

mm

220

Z axes travel

mm

300

X/Y/Z axes rapid moving speed

m/min

24/16/24

Tool turret

Tool turret type

/

8T Hydraulic tool turret&

4+4 Independent live tool group with Y axes

Live tool collet size

/

ER25

Live tool speed

rpm

3000

Tool shank size

mm

20×20, Φ25

Tailstock

Tailstock

/

N/A

Accuracy

Positioning accuracy(X/Y/Z)

mm

0.008/1000

Repeat positioning accuracy(X/Y/Z)

mm

≤0.005

  Others

Overall size

mm

2270×1940×2070

N.W.

kg

3000


Item

Brand

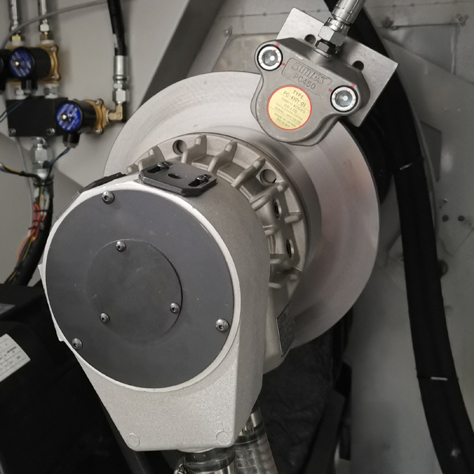

Spindle unit

TAIWAN-ROYAL

magnet ring encoder

TAIWAN-SYNTEC

Brake system

JAPAN-SANYO

Tool turret

TAIWAN-GSA/YULIN/SWIFT

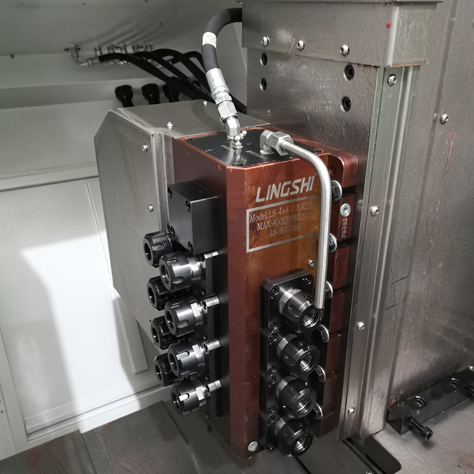

Live tool group

CHINA top

Ball screw

TAIWAN-HIWIN C3 class

 Ball screw bearing

GERMANY-FAG

Linear guideway

TAIWAN HIWIN

Lubrication system

TAIWAN-ISHAN

Rotary oil cylinder

TAIWAN-AUTOGRIP

Hydraulic parts

TAIWAN/JAPAN

Heat exchanger

Joint-venture

Main electricity parts

FRANCE-SCHNEIDER


Standard configuration:

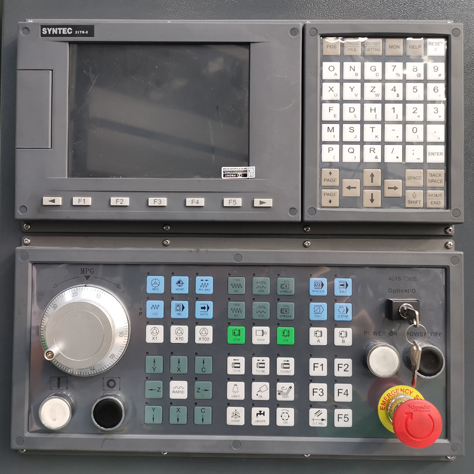

●SYNTEC 21TB CNC controller
●Hydraulic collet chuck
●8T hydraulic tool turret
●4+4 Independent live tool group with Y axes

Optional configuration:
●FANUC 0i TF CNC controller
●Automatic chip conveyor
●Parts catcher
●Bar feeder
