5-AXIS CNC MACHINING CENTER · 5V SERIES · BL-5V900

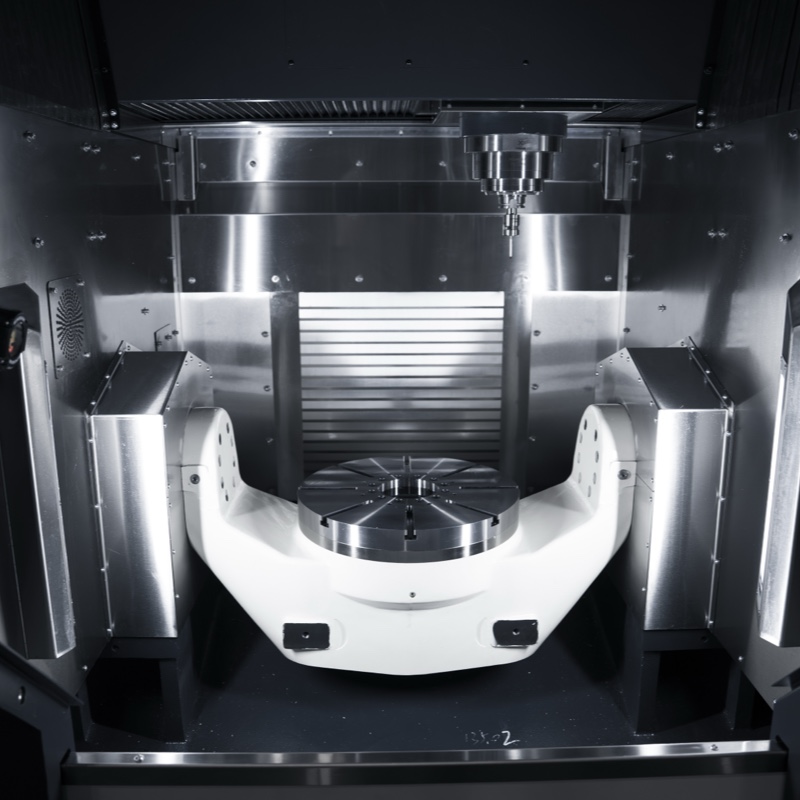

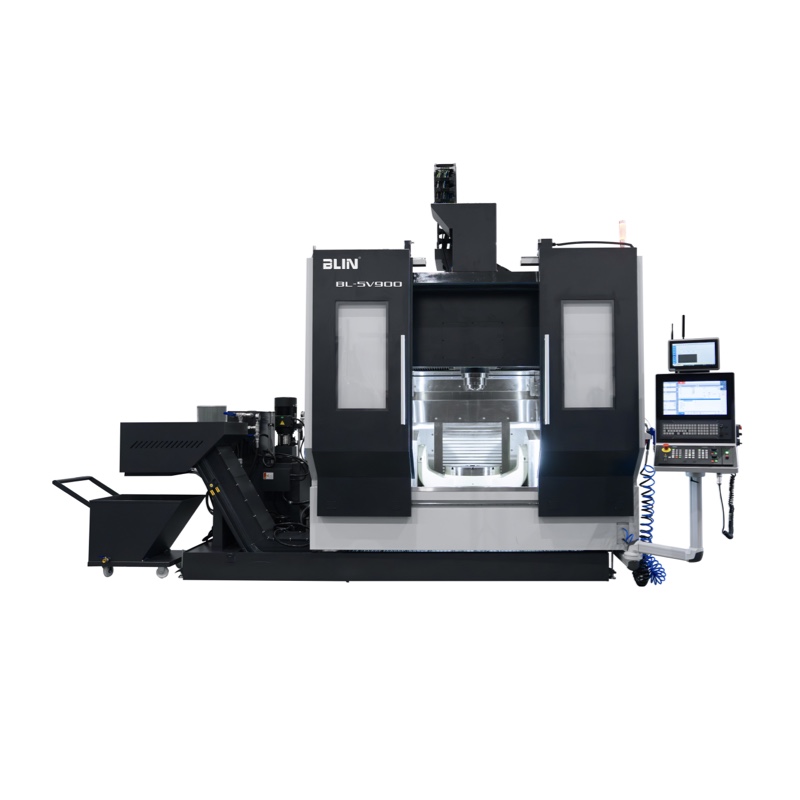

■ As a professional China 5 Axis CNC Machine manufacturer, BLIN engineers the BL-5V900 as a high-rigidity gantry 5 Axis Machining Center with cradle-type dual rotary A/C axes table, enabling simultaneous 5-axis interpolation for complex surface machining in a single setup.

■ Monolithic FEM-optimized ribbed cast-iron bed — the foundation of this 5 Axis CNC Machining Center — delivers exceptional structural rigidity and long-term thermal stability under continuous heavy-duty cutting conditions.

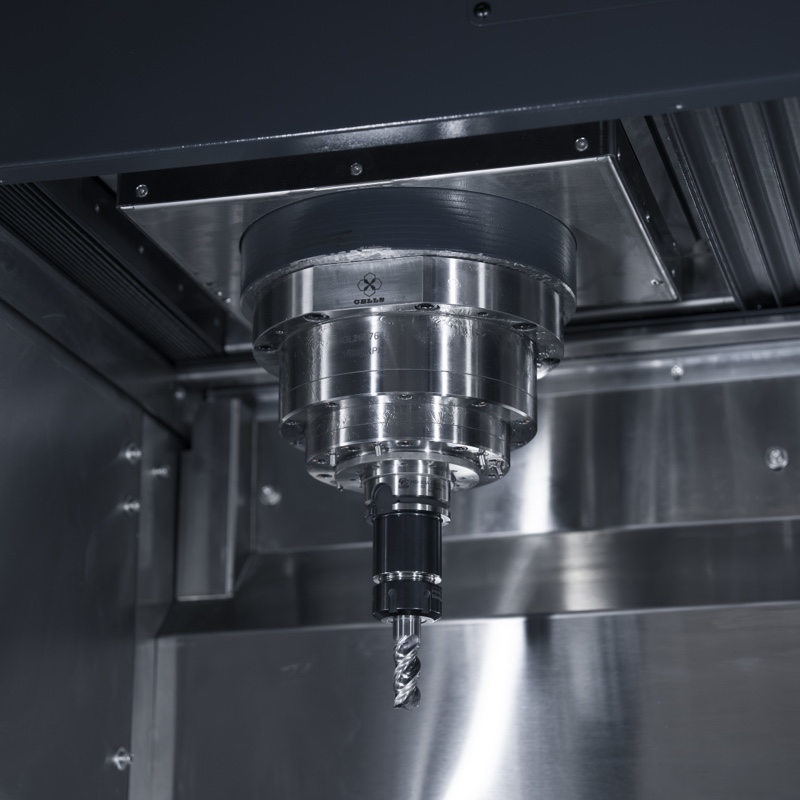

■ Built-in direct-drive HSK-A100 spindle reaching 12,000 rpm (51/79 kW) with high-precision hybrid bearings and closed-loop oil cooling, ensuring stable high-speed performance throughout the machine.

■ Full closed-loop circular-encoder measuring system with recirculating roller linear guideways and A-axis dual-drive mechanism guarantees high-precision, high-dynamic machining accuracy across all three linear axes.

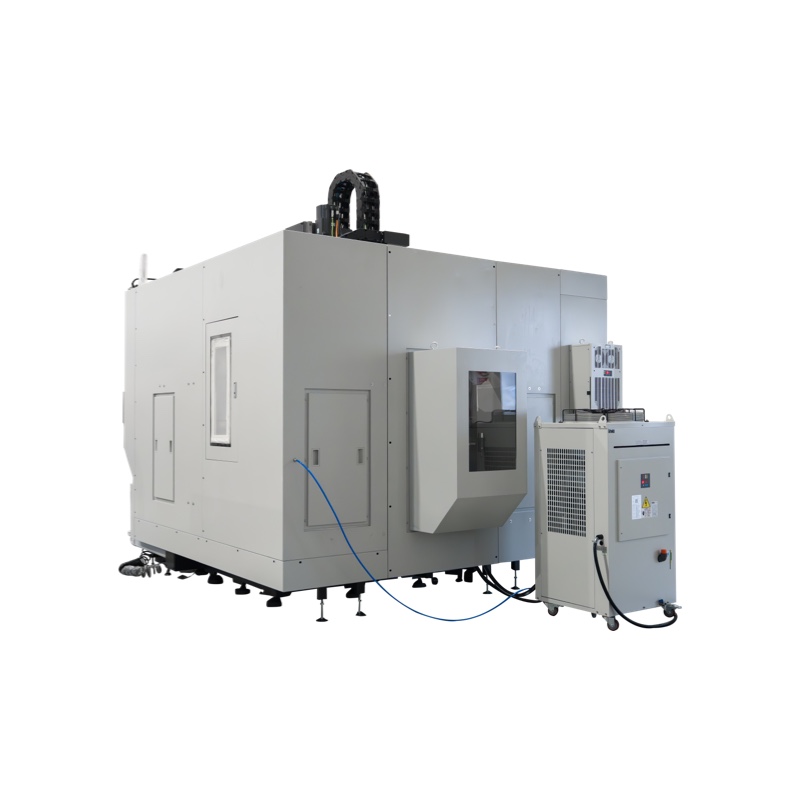

■ Compact, energy-efficient whole-machine design that fits a standard 40HQ container without disassembly — a direct advantage for global buyers sourcing a reliable 5 Axis Machining Center straight from the factory manufacturer.

Spindle

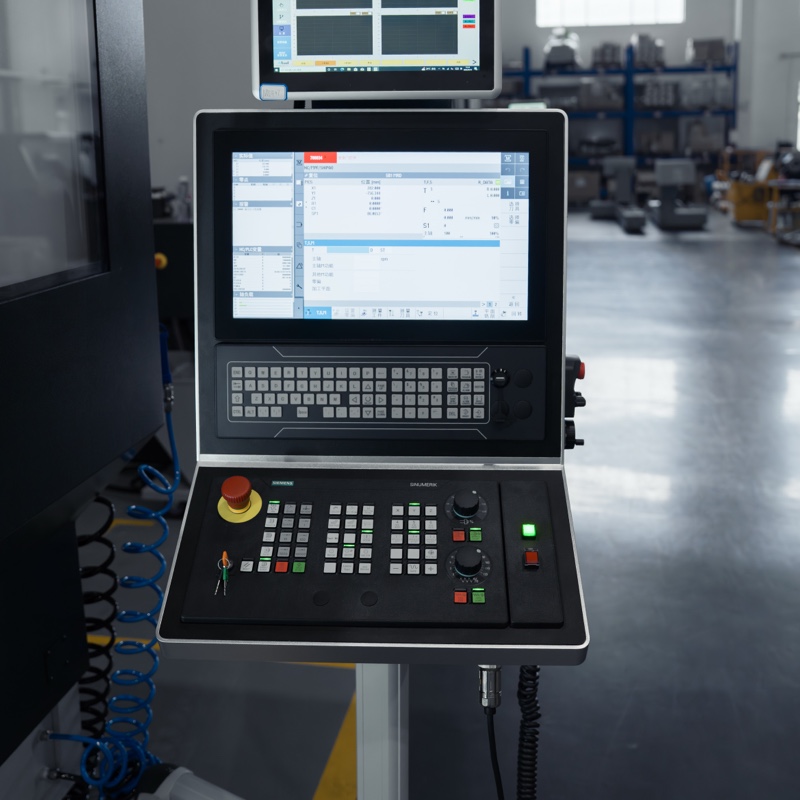

CNC System

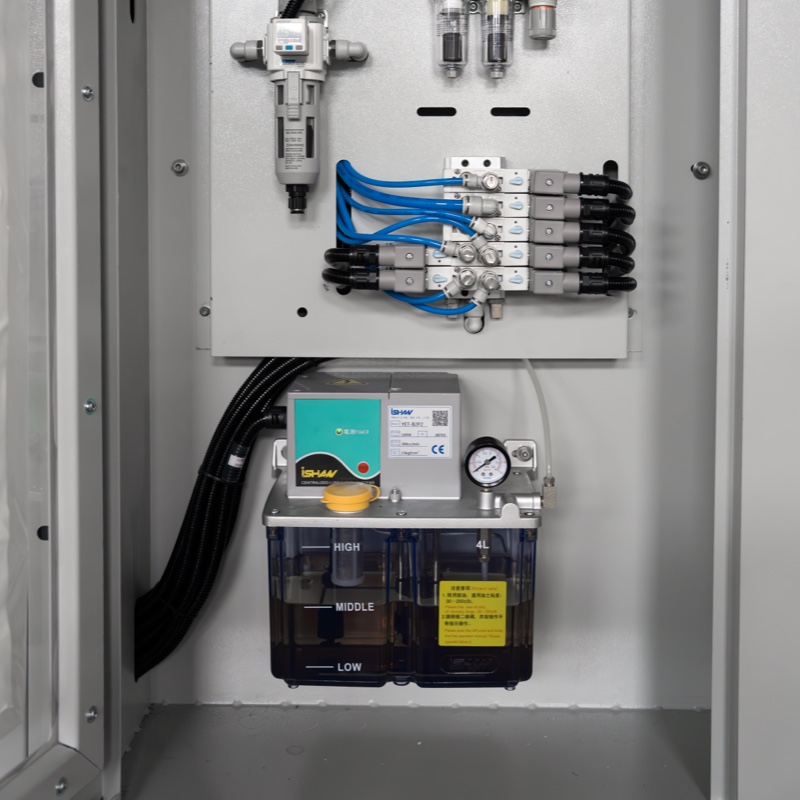

Pneumatic lubrication components

Internal
