● Core Positioning: Engineered specifically for mold finishing where extreme precision is the ultimate goal.
● Technical Highlights: Designed by German engineers; the entire production process strictly adheres to Taiwanese quality standards. Features a thermally symmetrical headstock design to effectively suppress thermal deformation.
● Performance Benchmark: All three axes utilize Japanese THK wide-type precision linear guideways; the X/Z axes are equipped with 6 slide blocks for ultra-high rigidity.
● Accuracy Assurance: Positioning accuracy of±0.004 mm; Repeatability of ±0.003 mm.
■ "P" means PRECISE type
■ Designed by GERMAN engineer, OEM made for EU distributor
■ Whole production process accord to TAIWAN standard
■ Most parts adopt GERMAN/ JAPAN/ TAIWAN brand
■ Most optimized structure by "Pro/E" and "Ansys" software
■ Adopt high strength MEEHANTE class resin sand cast iron, 2 years' natural aging treatment, eliminate stress, ensure optimum rigidity, precision and persistence
■ Adopt large-span base and super wide column design, ensure good rigidity, frame adopt multilayer strengthening rib, ensure strength and stability
■ The slide blocks' support point of saddle & table basically reach the "bassel point", ensure the stability
■ Spindle box adopt thermal symmetry design, reduce thermal deformation
■ 3 axes use JAPAN THK brand widened precise class linear guideway, high rigidity, suitable for heavy cutting
■ X,Z axes linear guideway mount 6pcs slide blocks, super high rigidity
■ 3 axes use JAPAN THK brand C2 class precision ball screw, match up nut preloading and ball screw pre-stretching, pre-eliminate backlash and temperature rising, ensure stable positioning and repeatable positioning precision
■ Use 24T Arm type tool magazine, adopt CAM driving, tool changing is feast and stable, tool selection for bi-way
■ Tool magazine is supported by step of column, much more stable performance than common side hanging type
■ Perfect rigidity, processing speed, accuracy, stability
■ Especially suitable for Mould's rough and finish machining

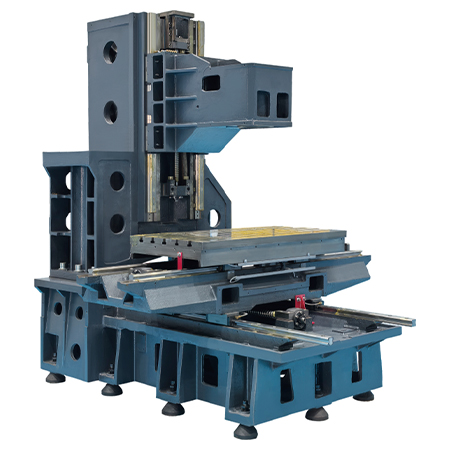

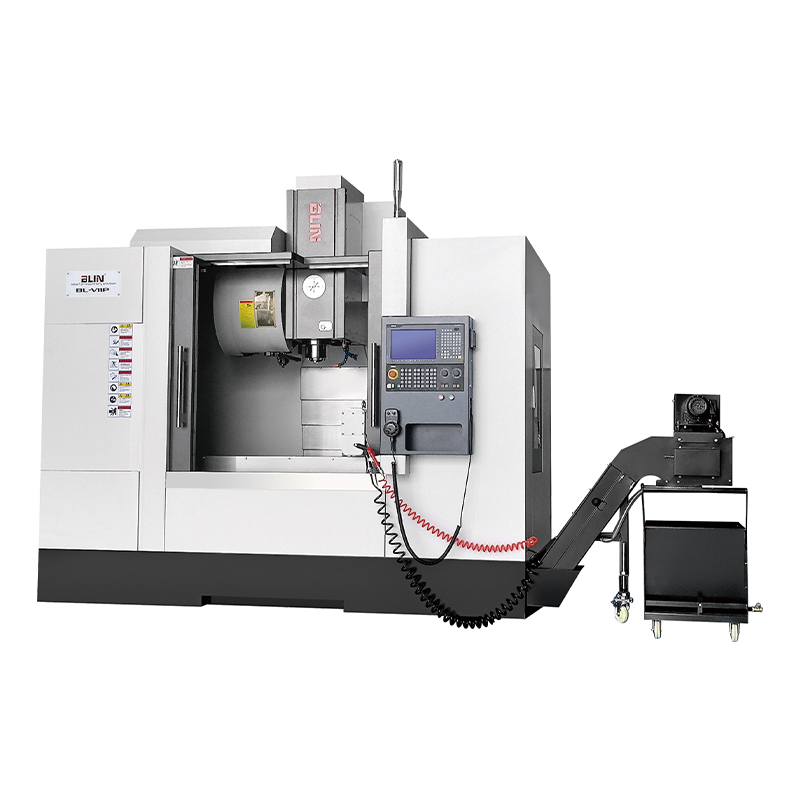

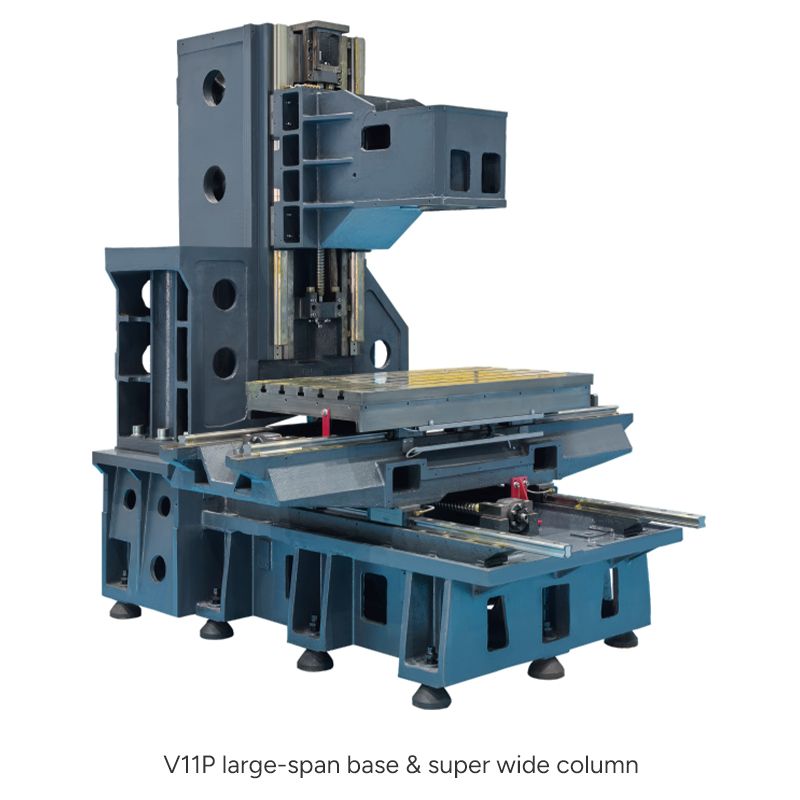

V11P large-span base & super wide column

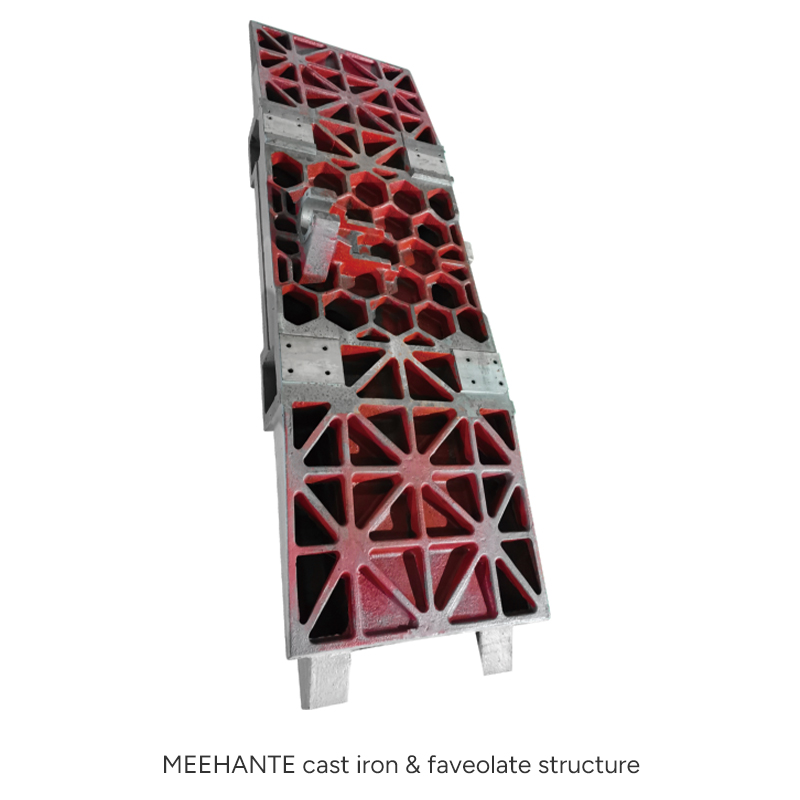

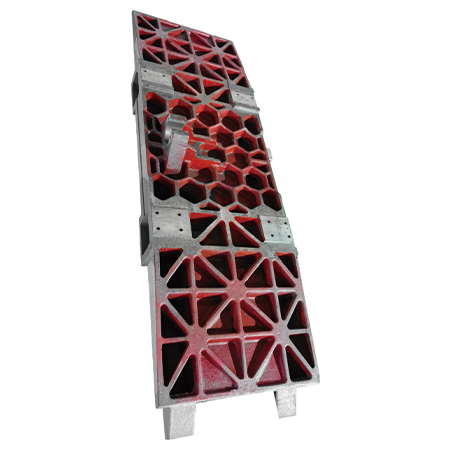

MEEHANTE cast iron & faveolate structure

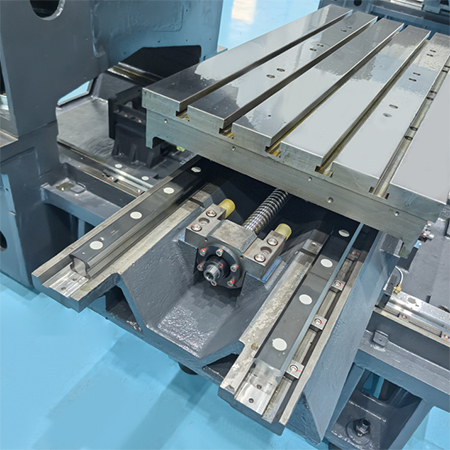

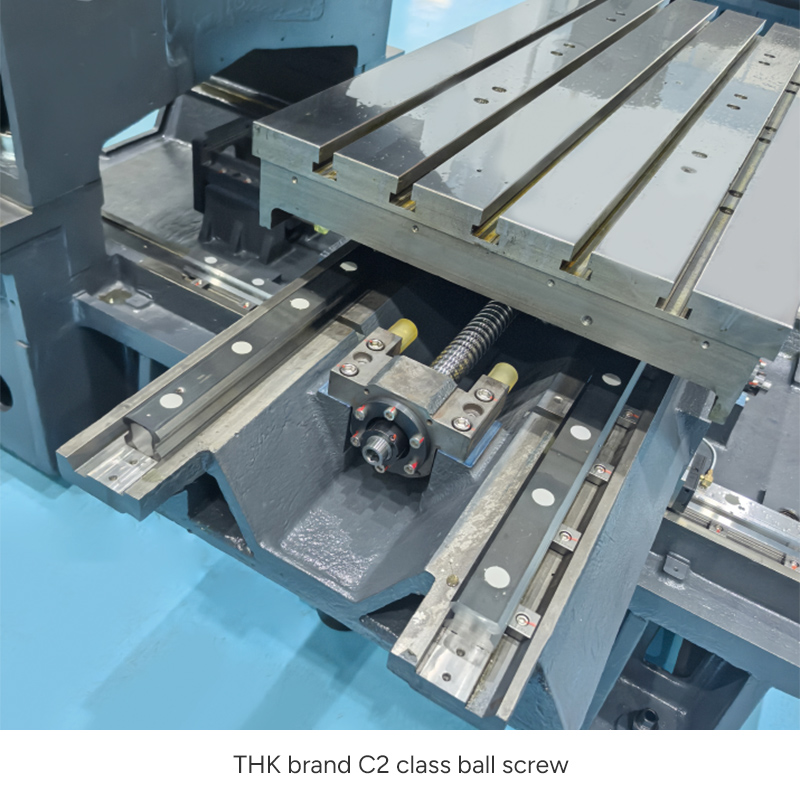

THK brand C2 class ball screw

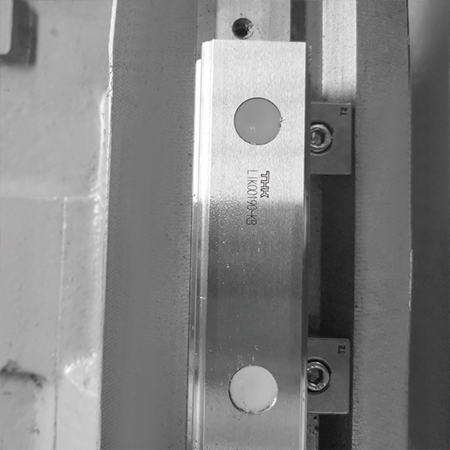

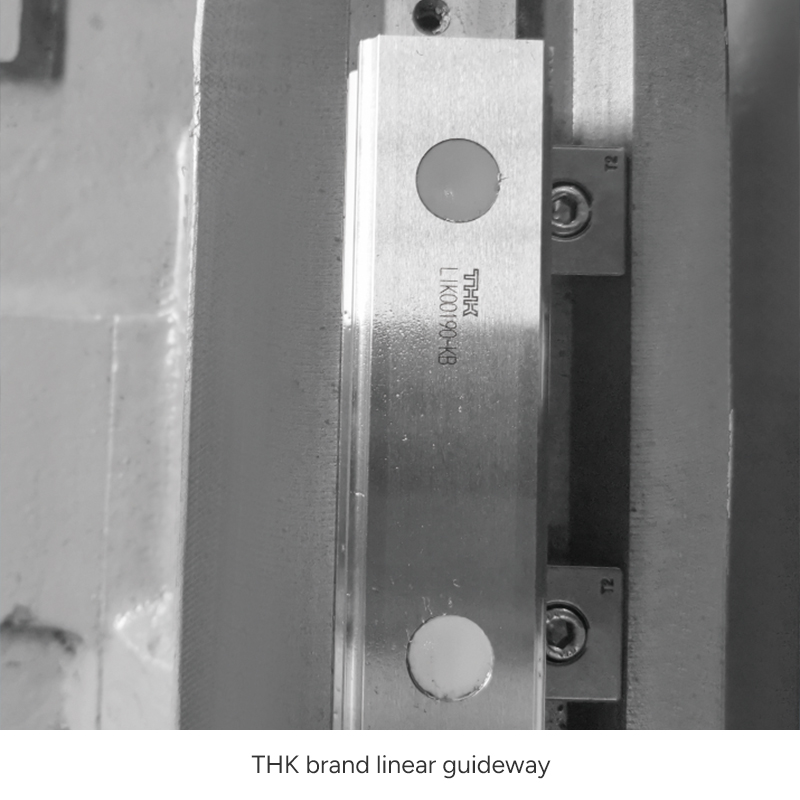

THK brand linear guideway

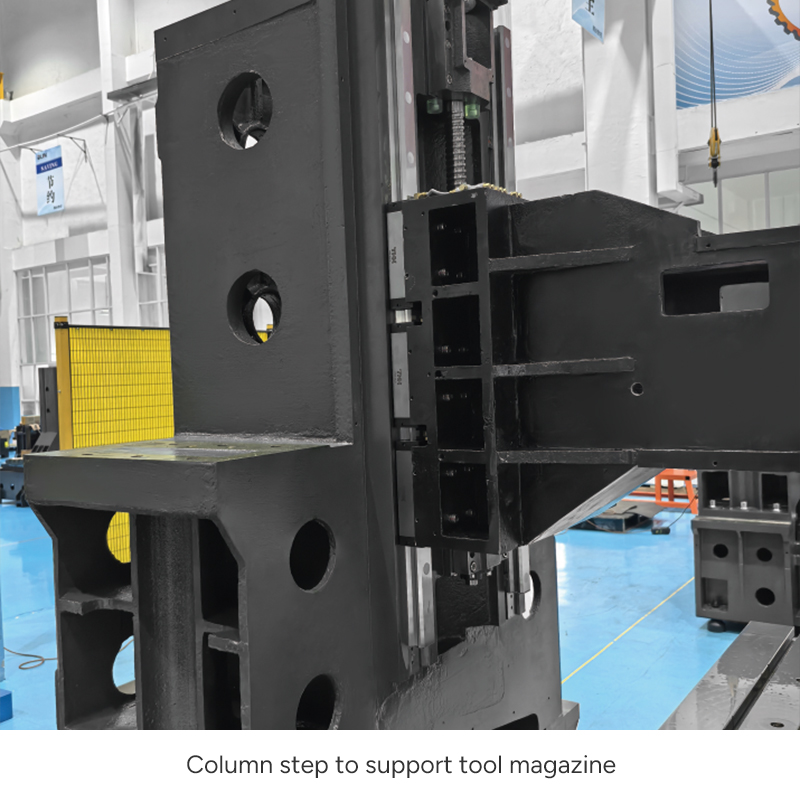

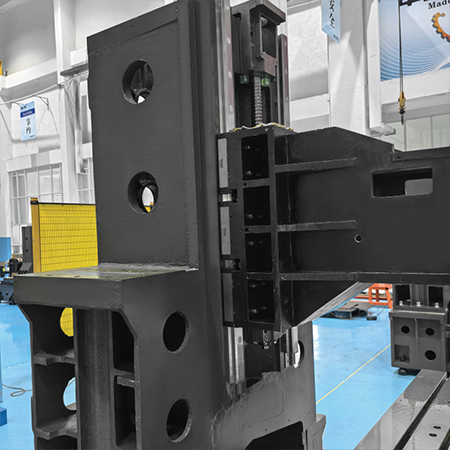

Column step to support tool magazine

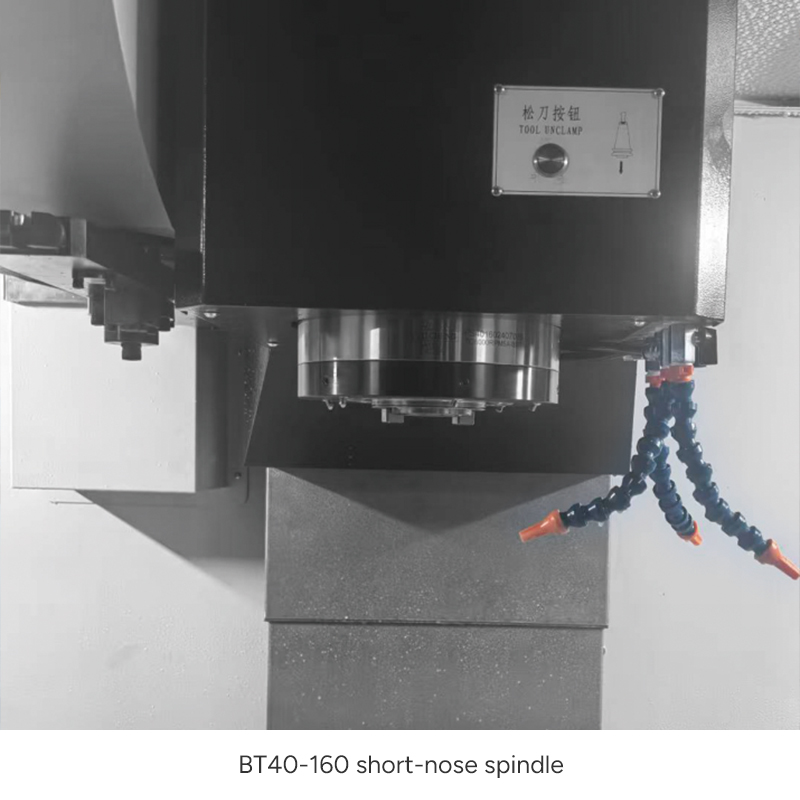

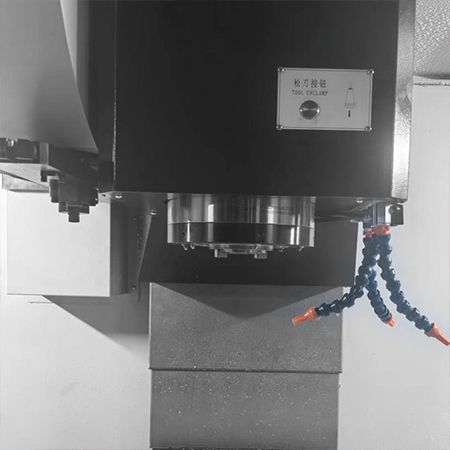

BT40-160 short-nose spindle

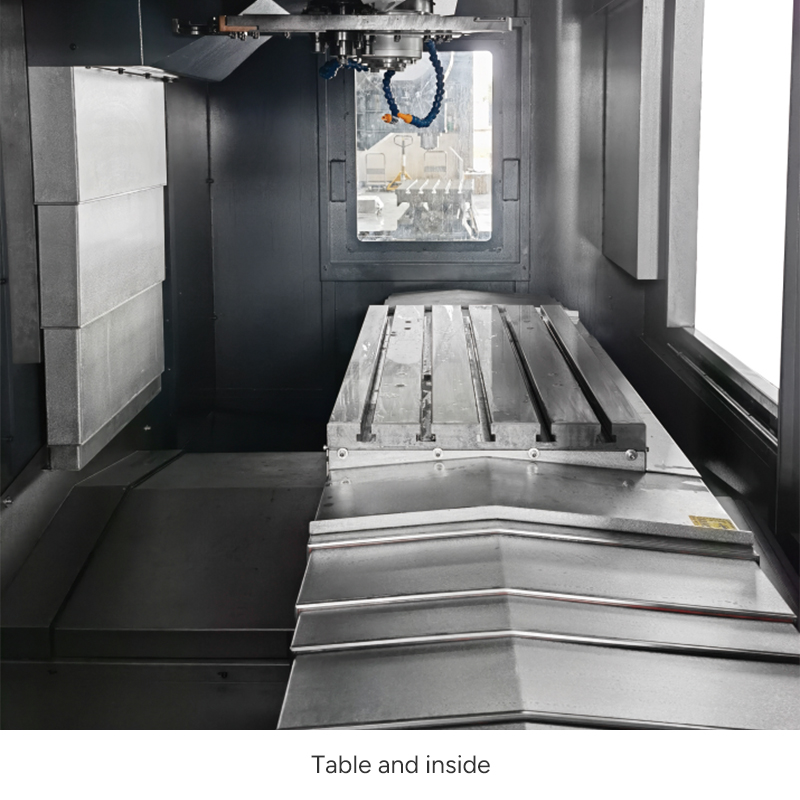

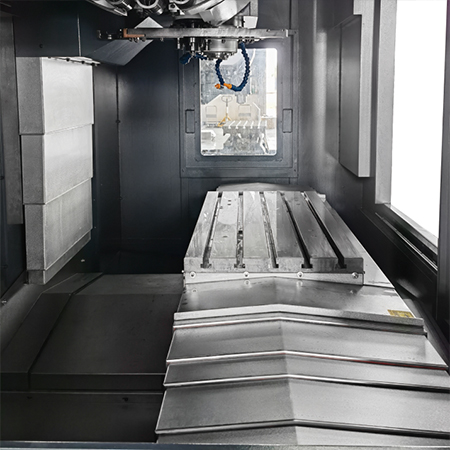

Table and inside

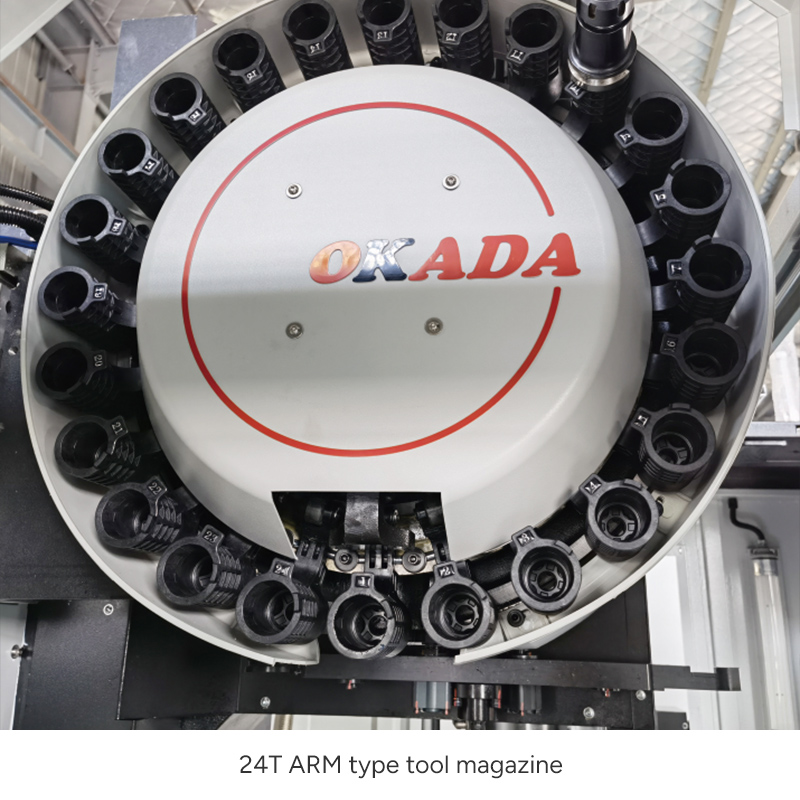

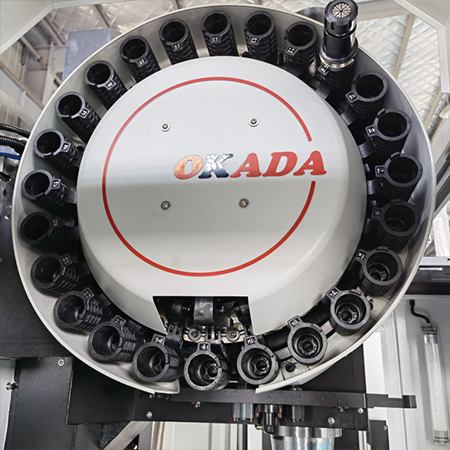

24T ARM type tool magazine
