Japanese Technology, Dual Spindle, 5 Axes
The BL-CSL205/265 series represents the standard for versatile, high-volume production of precise, slender axle workpieces. Adopting Japanese technology and structure, it utilizes high-tier components from Germany, Japan, and Taiwan.
● 5/6-Axis Dual Spindle Performance: The dual-spindle configuration allows for comprehensive machining of complex parts in a single setup.
● Precision Engineering: Equipped with high-precision built-in electro-spindles and THK/PMI linear guideways to maintain superior precision retention.
● Broad Capacity: Supports machineable bar diameters up to 20mm (CSL205) or 26mm (CSL265).
● Reliable Components: The series incorporates Schneider electrical parts and Airtac pneumatic components for industrial-grade reliability.
■ Features a dual spindle design with a total of 5 axes (6 axes optional), especially suitable for producing complex, precise super small diameter workpieces (1~5mm) up to 26mm parts.
■ Adopts a highly rigid structure similar to premium JAPANESE CNC Swiss lathes.
■ Engineered with JAPANESE technology. Most core components of this 20mm/26mm Swiss turning center adopt reliable GERMANY/JAPAN/TAIWAN brands.
■ Built with meehanite resin sand cast iron. After strict aging treatment, the machine bed exhibits small distortion, good heat stability, and the high rigidity required for guide bushless operations.
■ Adopts a high precision built-in electro-spindle (servo motor directly integrated). Utilizing NSK/NTN super high precise angle contact ball bearings, it achieves the spindle's high rigidity and excellent precision retention with a spindle flop of ≤2μm.
■ Uses JAPAN THK / TAIWAN-PMI brand high precision ball screws and linear guideways to ensure smooth, high-speed tool movements.
■ Can easily achieve turning, milling, and drilling combined machining (one-hit machining) by utilizing powerful side-mounted live tools and CS axes on both spindles.
■ After mounting an automatic bar feeder, this dual spindle Swiss lathe can realize 24/7 continuous automatic machining without operator intervention.
■ Perfectly suitable for complex, small-sized, precise, and slender axle workpiece machining for the automotive and medical industries.

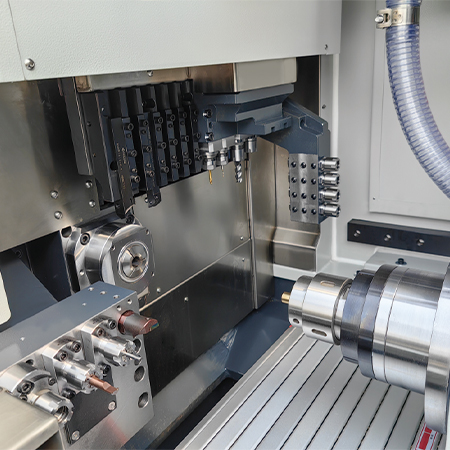

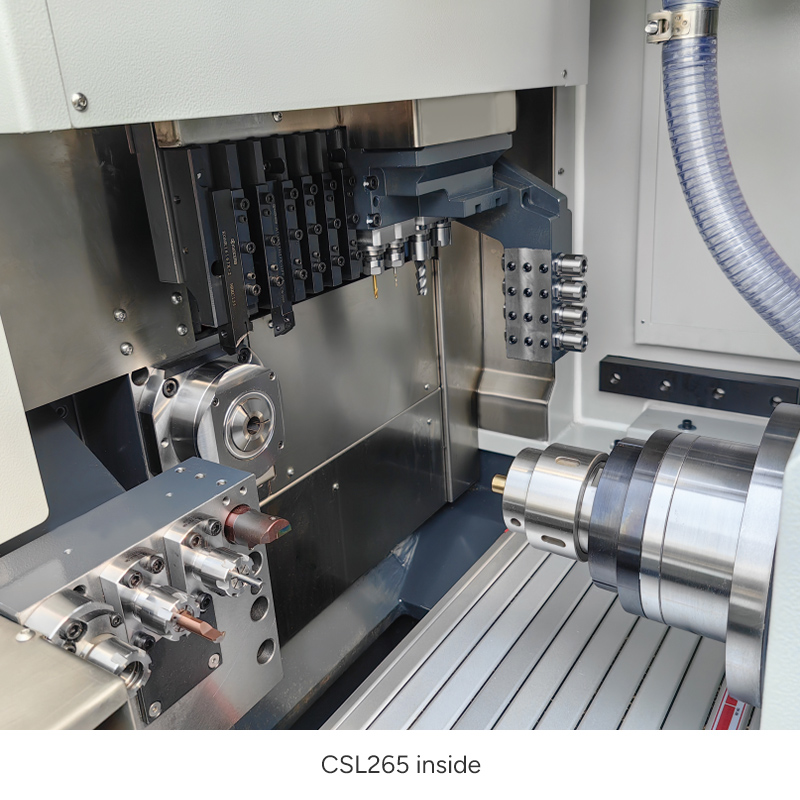

CSL265 inside

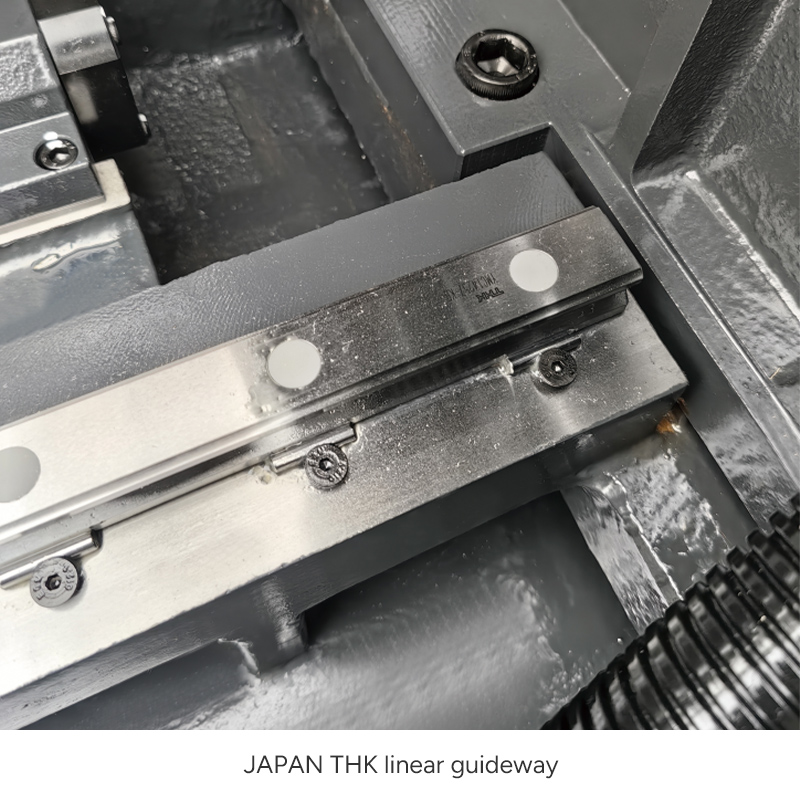

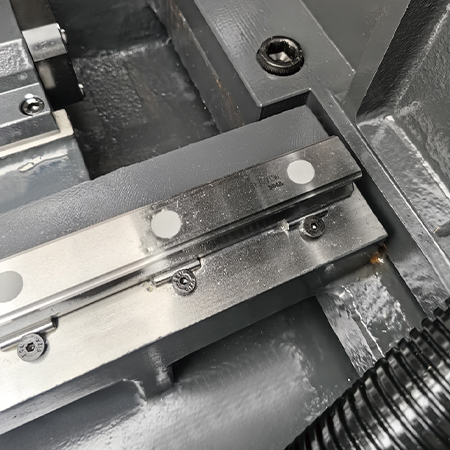

JAPAN THK linear guideway

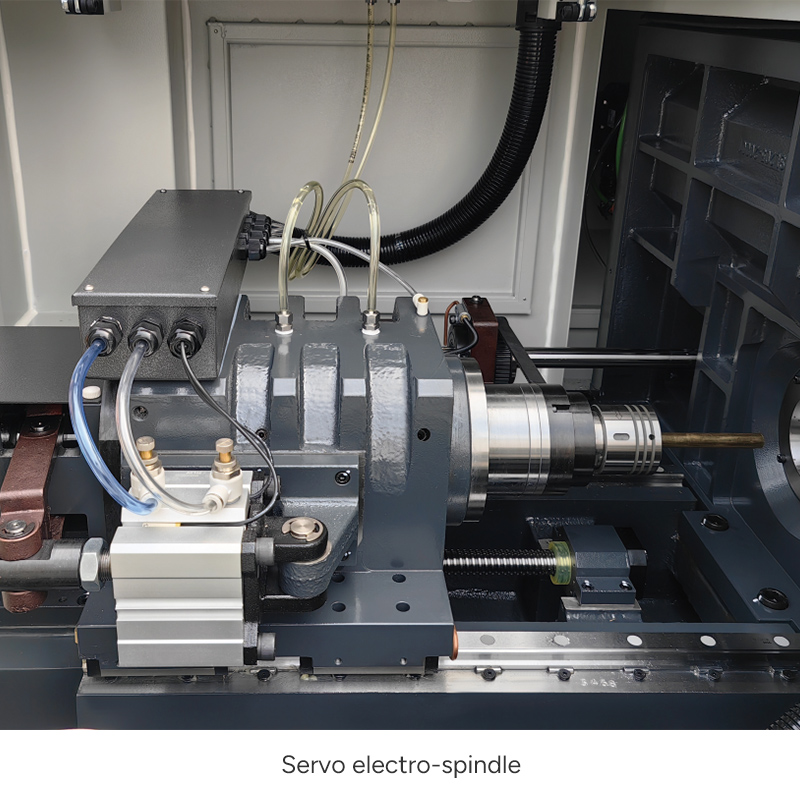

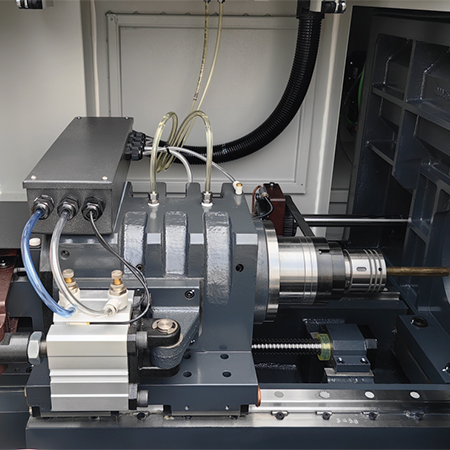

Servo electro-spindle

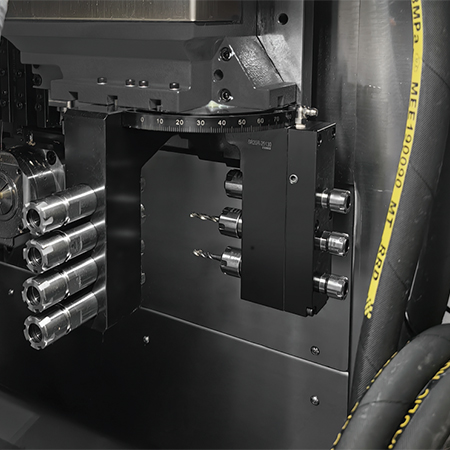

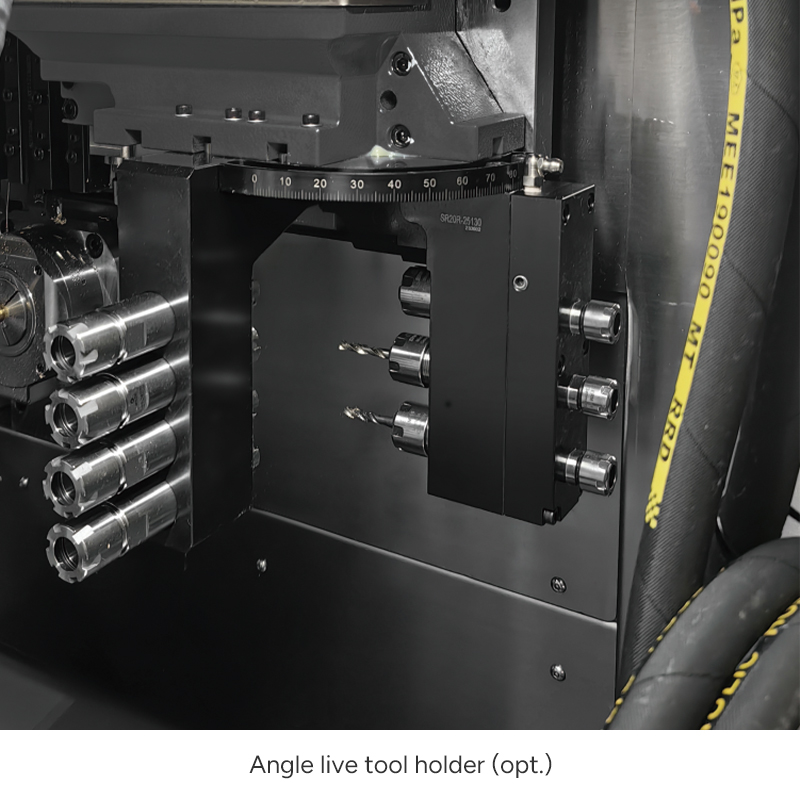

Angle live tool holder (opt.)

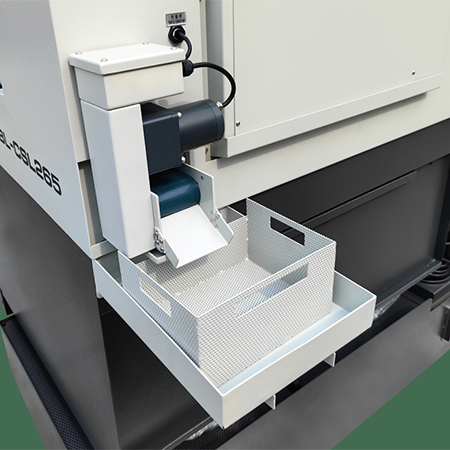

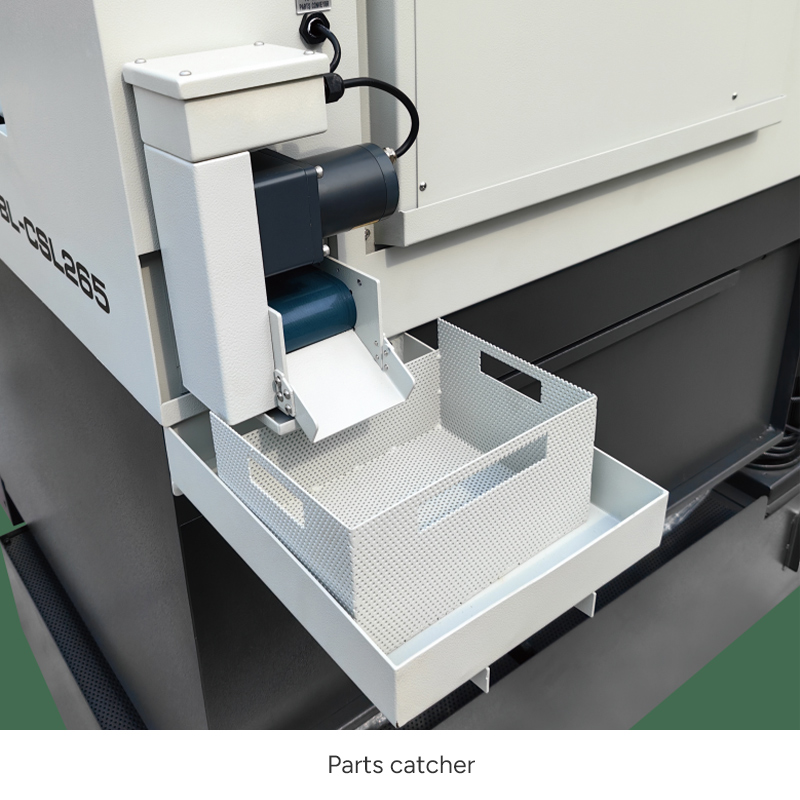

Parts catcher

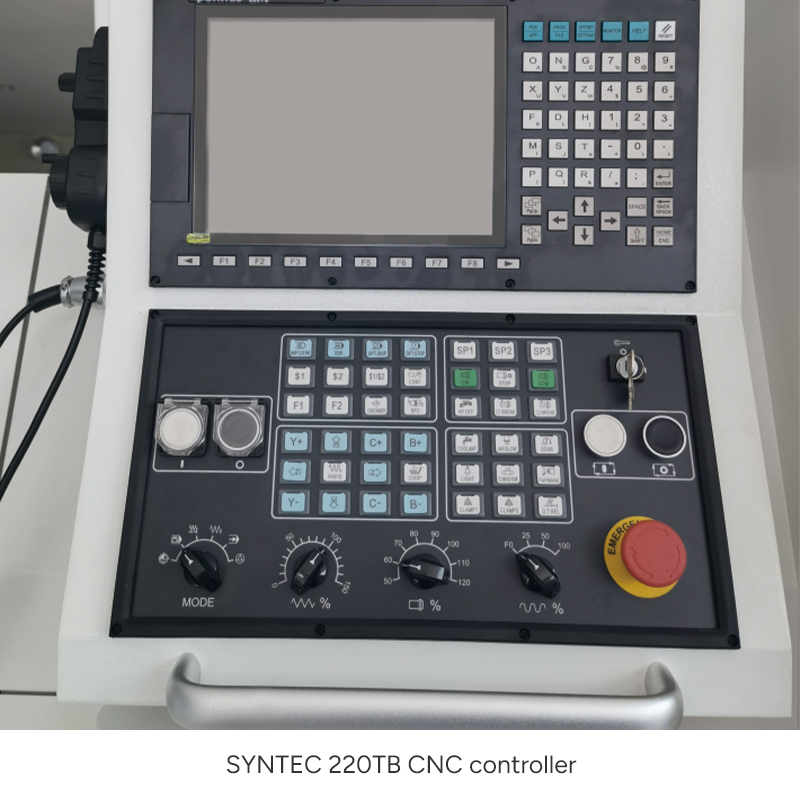

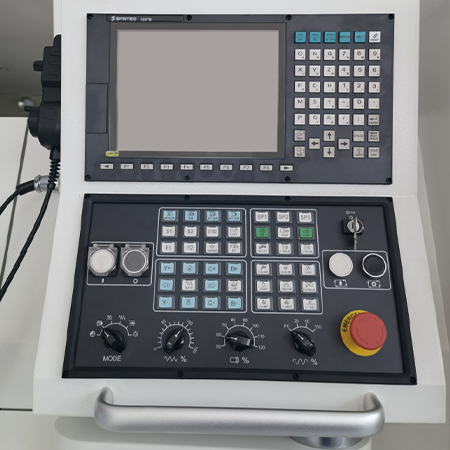

SYNTEC 220TB CNC controller

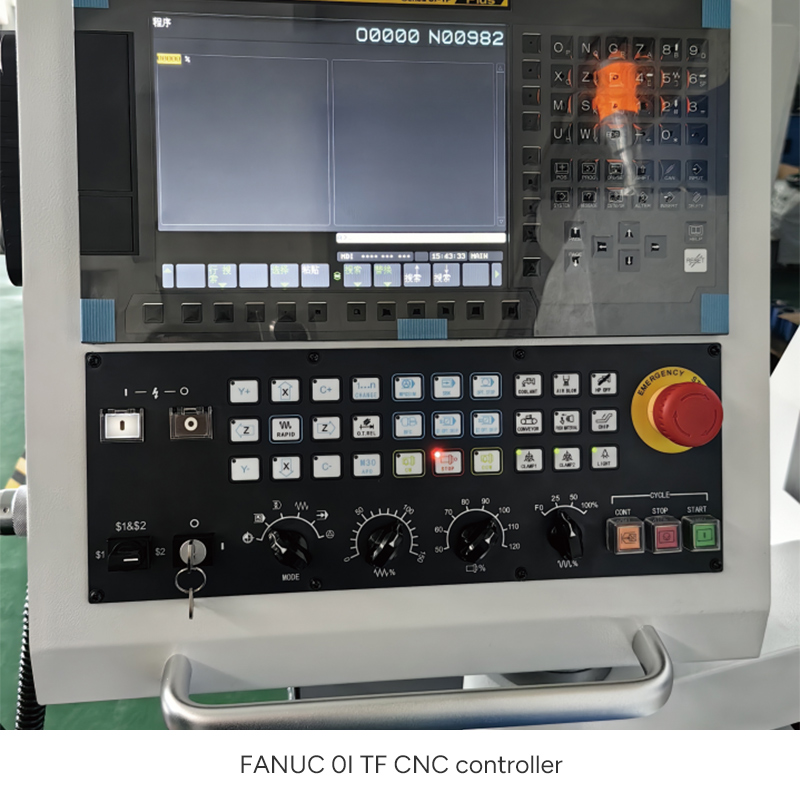

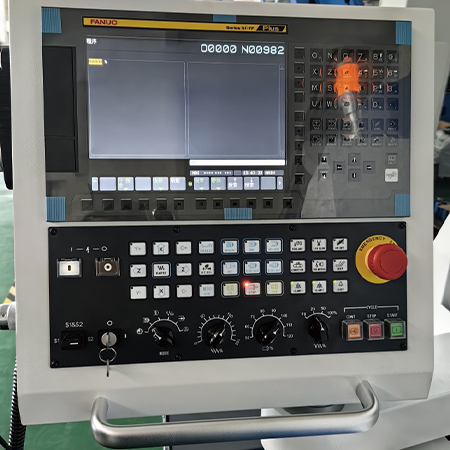

FANUC 0I TF CNC controller

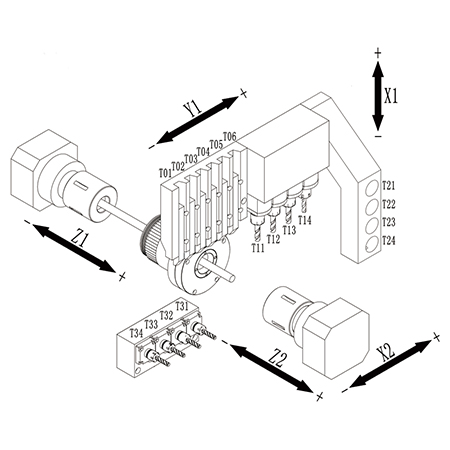

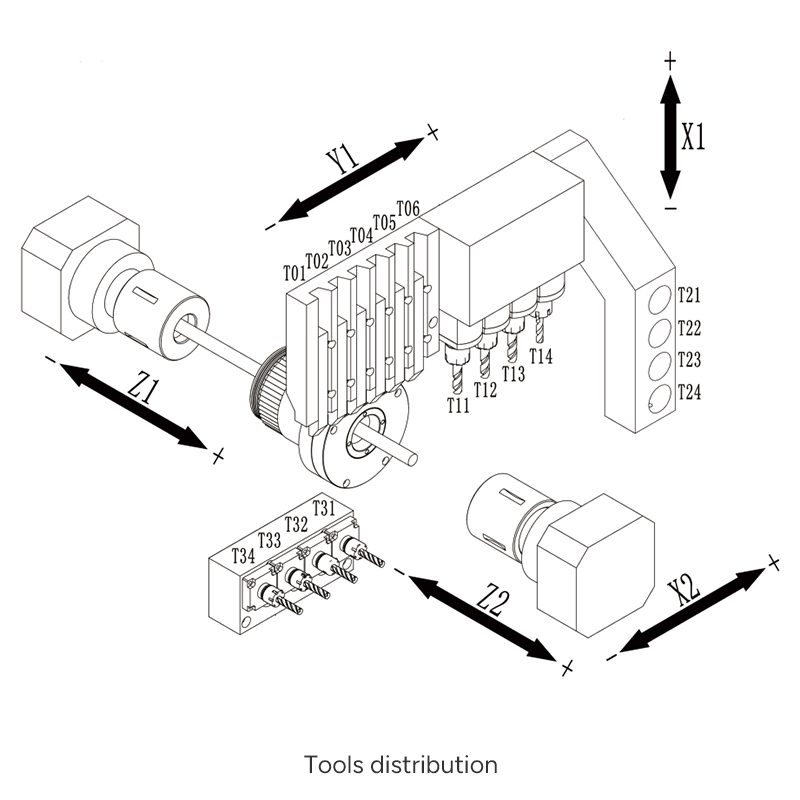

Tools distribution
