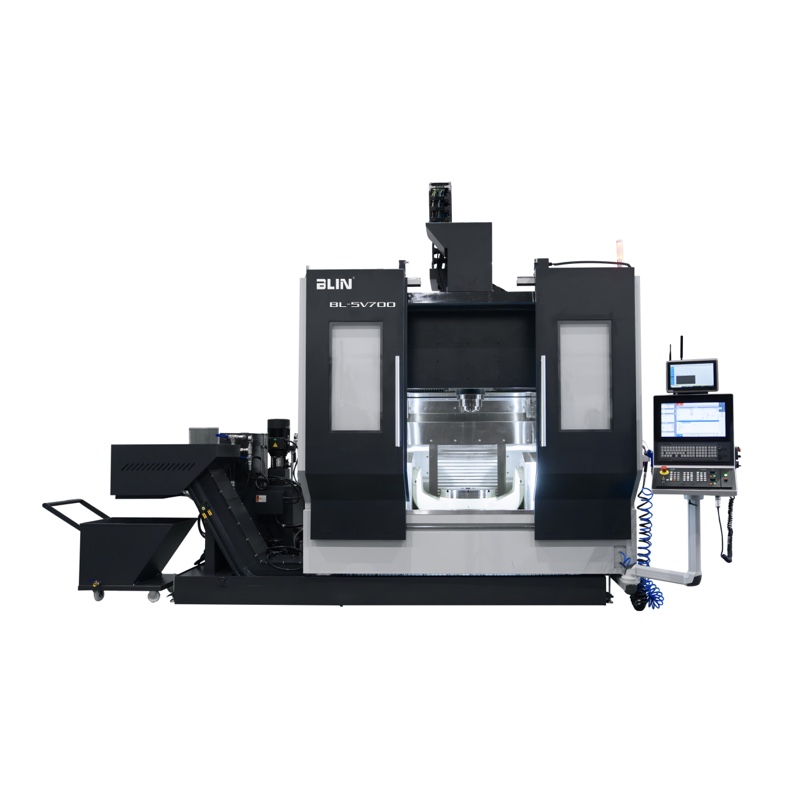

5-AXIS CNC MACHINING CENTER · 5V SERIES · BL-5V700

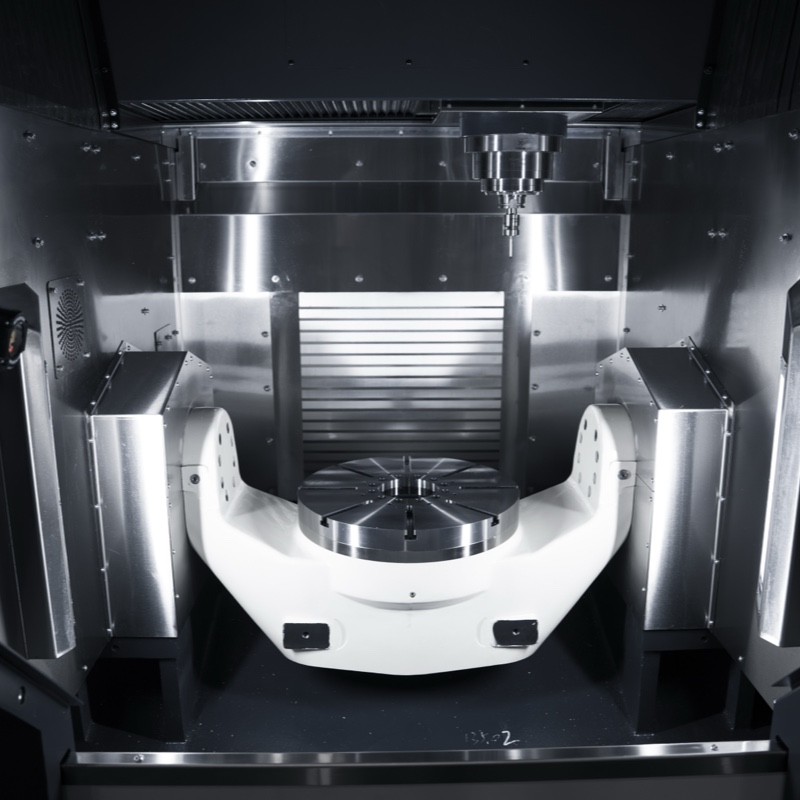

■ As a professional China 5 Axis CNC Machine manufacturer, BLIN engineers the BL-5V700 as a gantry 5 Axis Machining Center built around an overhead gantry structure with A/C-axis dual direct-drive (torque-motor) rotary table for simultaneous 5-axis machining of complex parts.

■ Monolithic FEM-optimized ribbed cast-iron bed for high rigidity and thermal stability — ensuring long-term accuracy in this 5 Axis CNC Machining Center.

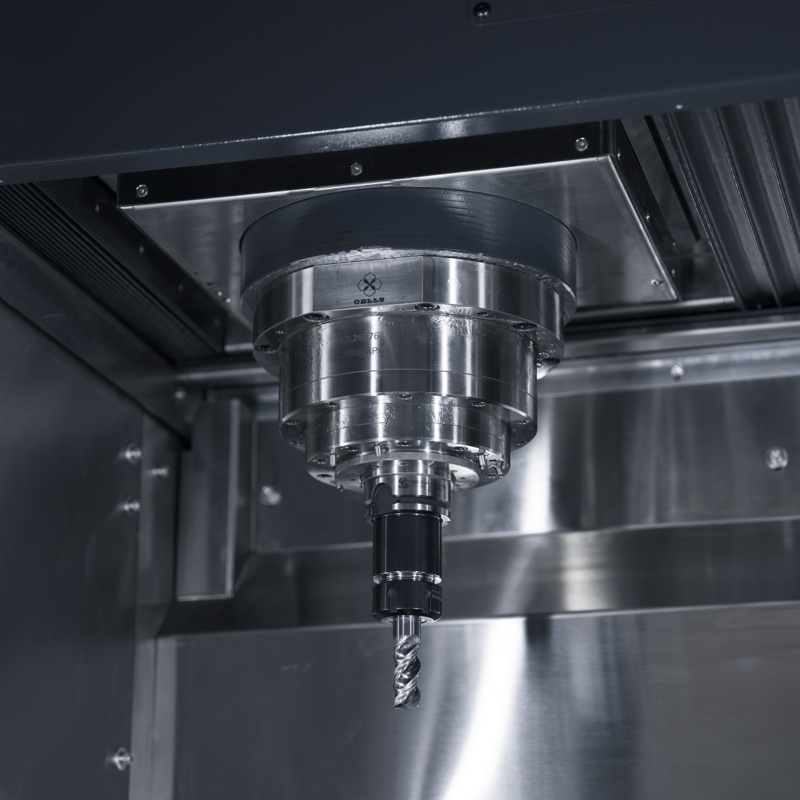

■ Built-in direct-drive high-torque motor spindle with hybrid bearings and closed-loop oil cooling, delivering stable high-speed operation at up to 18,000 rpm with HSK-A63 taper. Explore our full range of CNC milling machines for more options.

■ Full closed-loop absolute glass-scale measuring system with recirculating roller guideways and high-dynamic feed drives for consistent, repeatable precision.

■ Compact, green and energy-efficient design with whole-machine packaging into a standard container without disassembly. Need heavier cutting capacity? Check out our BL-5V900 large-format 5 Axis Machining Center for bigger workpieces.

Spindle

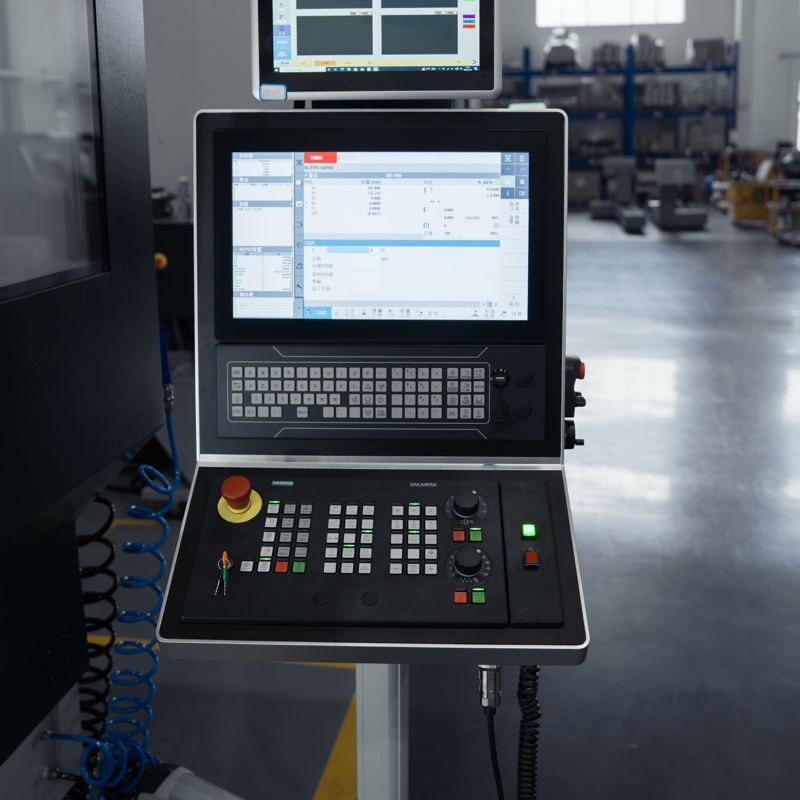

CNC System

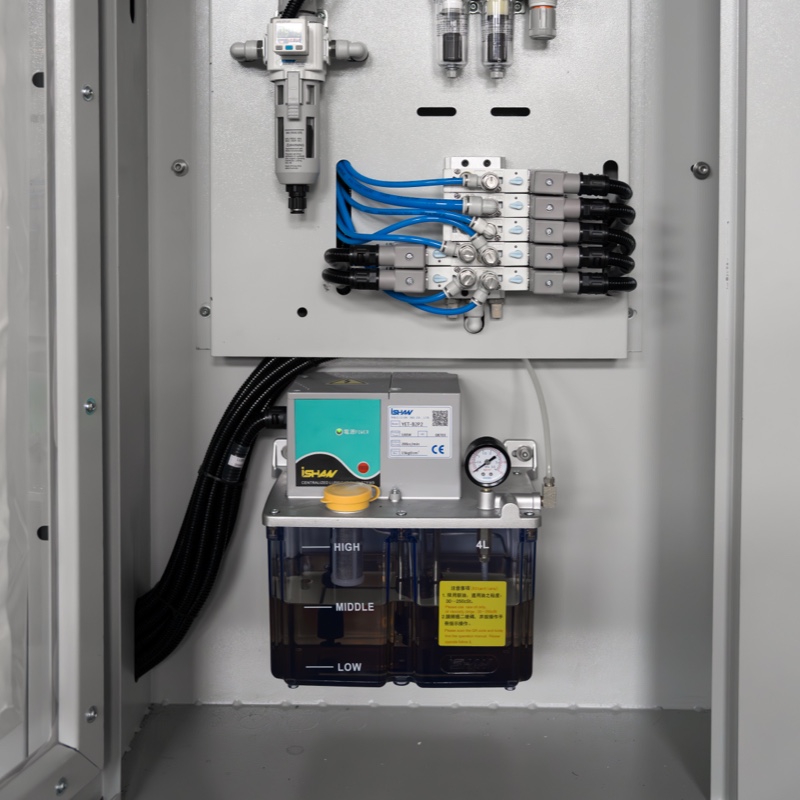

Pneumatic lubrication components

Internal
