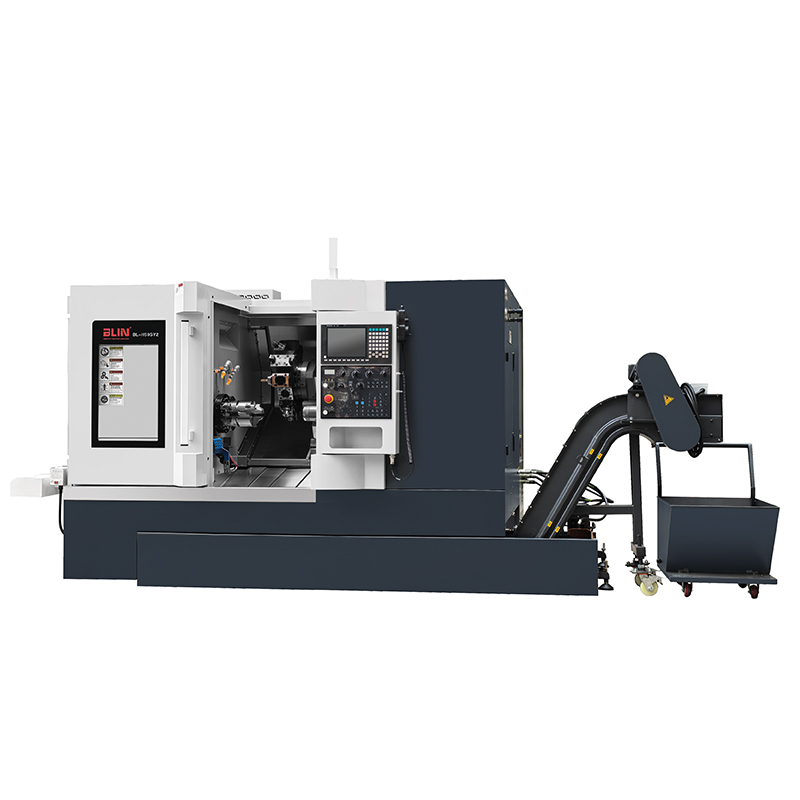

Taiwan Technology, Dual Spindles And Dual Tool Turrets, With Slant Interpolation Y Axes

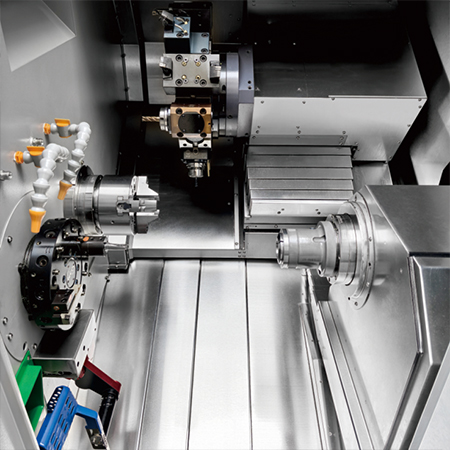

Configured with dual spindles and dual turrets (BMT55+VDI20), supporting simultaneous cutting on both spindles to maximize the machine's output potential per unit.
Fusing advanced Taiwanese craftsmanship with modular design, it can expand processing functions according to industry needs, offering extreme flexible production capacity.
Provides an efficient solution for integrated parts with tedious processes, such as commercial vehicle and agricultural machinery components, with single-clamping, full-process completion.
■ Main spindle side adopt BMT55 powered tool turret with interpolation Y axes, sub-spindle side adopt VDI20 non-powered tool turret
■ Can realize main spindle side and sub-spindle sides' meantime machining
■ Adopt TAIWANESE technology, designed by TAIWANESE engineer, most parts adopt GERMANY/JAPAN/TAIWAN brand
■ Adopt modularization design, has strong extended function, easy for various especial configuration choice
■ Adopt HT300 resin sand cast iron, after aging treatment and FEA analysis, small distortion, good torsional strength, good heat stability
■ Base adopt multilayer strengthening rib, ensure bed's strength and stability
■ Main spindle and sub-spindle adopt high precision electro-spindle unit, big output torque, rapid start-stop speed
■ Adopt high precision pre-stretched ball screw, coupled with motor directly by linkager, high transmission rigidity, can realize high precise turning
■ Adopt high precision ROLLER type linear guideway, high rigidity, good accuracy holding, suitable for heavy loading and precise machining

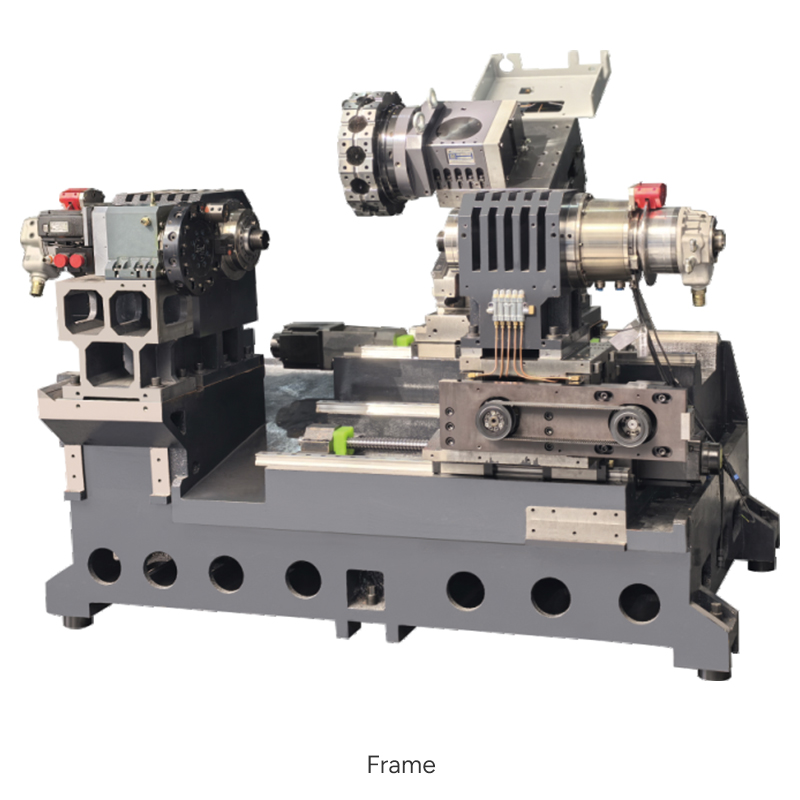

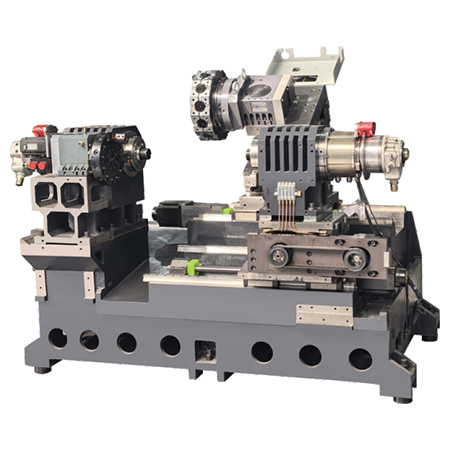

Frame

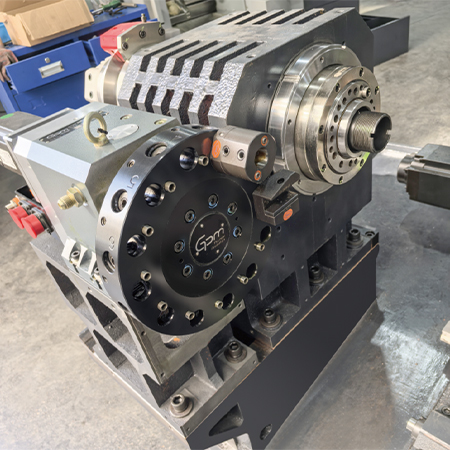

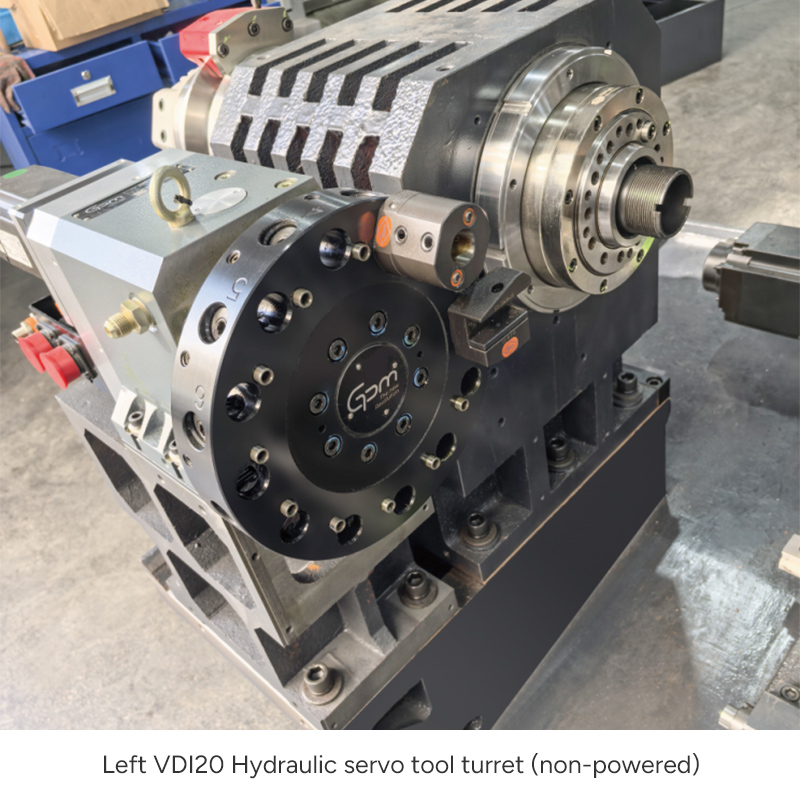

Left VDI20 Hydraulic servo tool turret (non-powered)

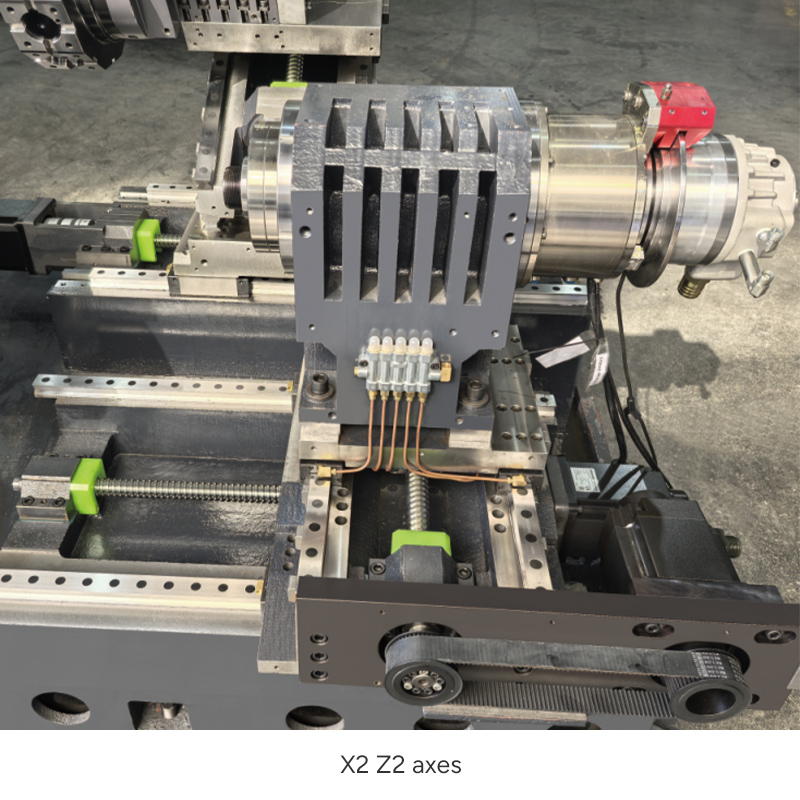

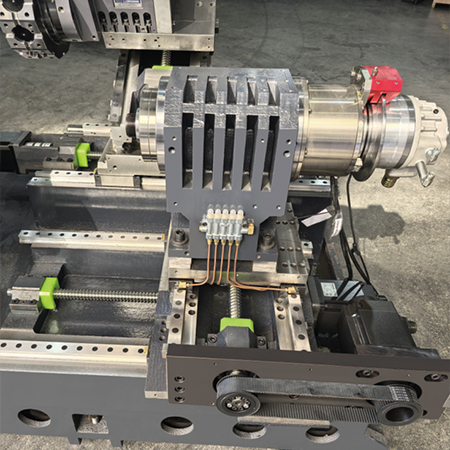

X2 Z2 axes

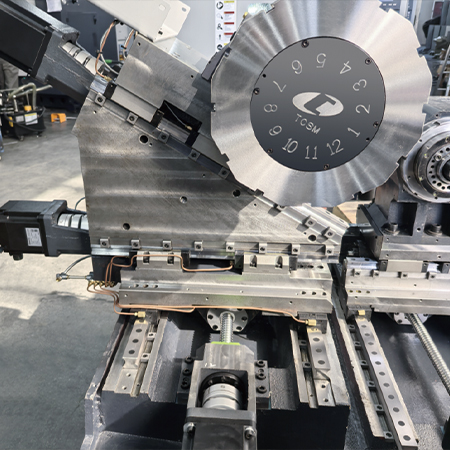

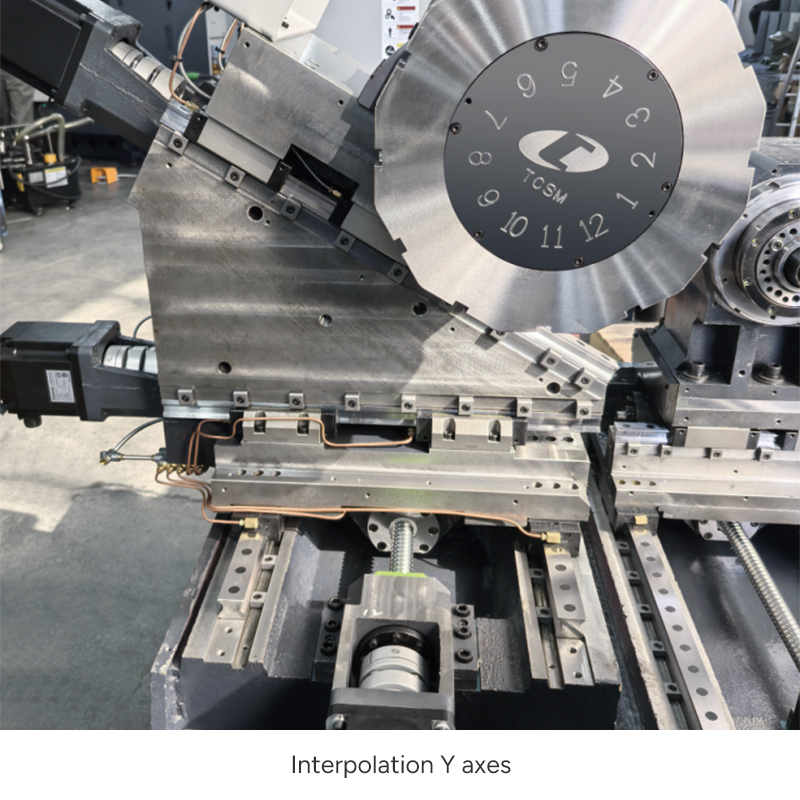

Interpolation Y axes

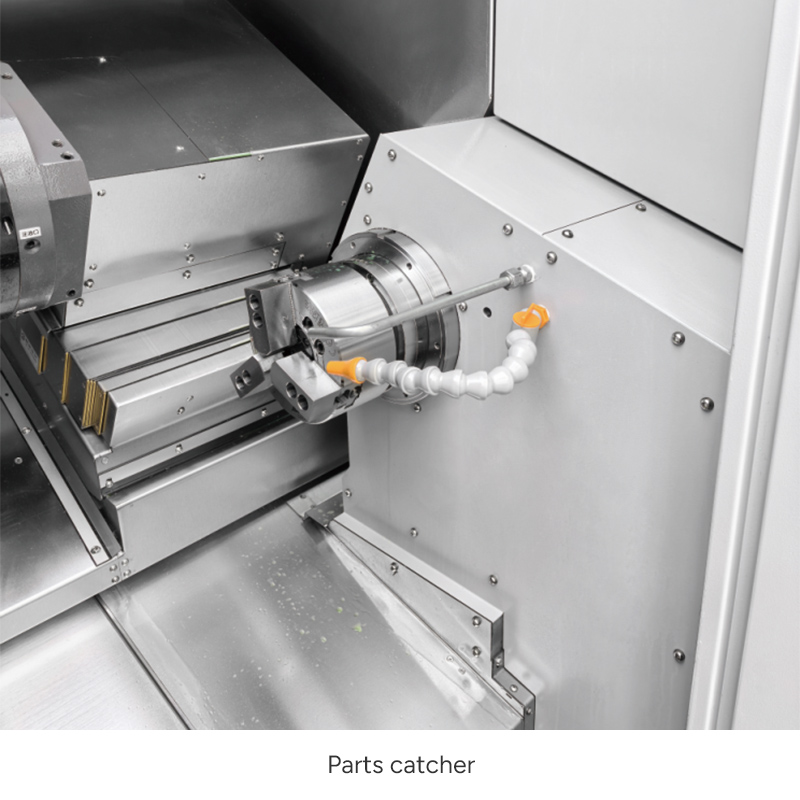

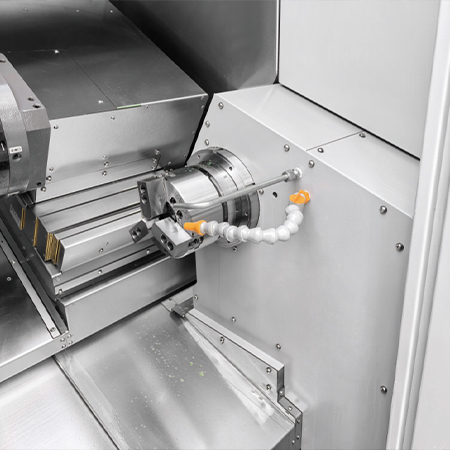

Parts catcher
Sub-spindle

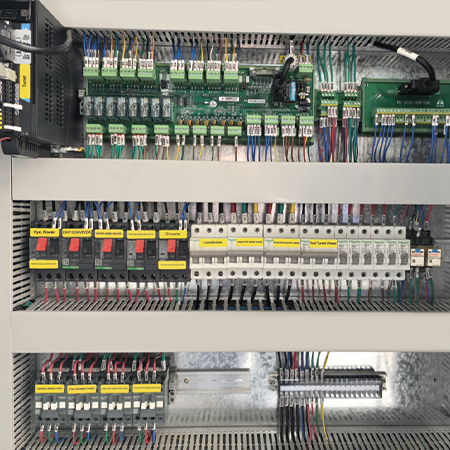

SCHNEIDER brand electricity parts

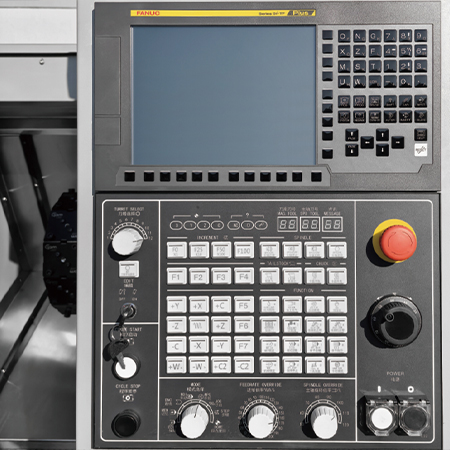

FANUC 0I TF CNC controller
