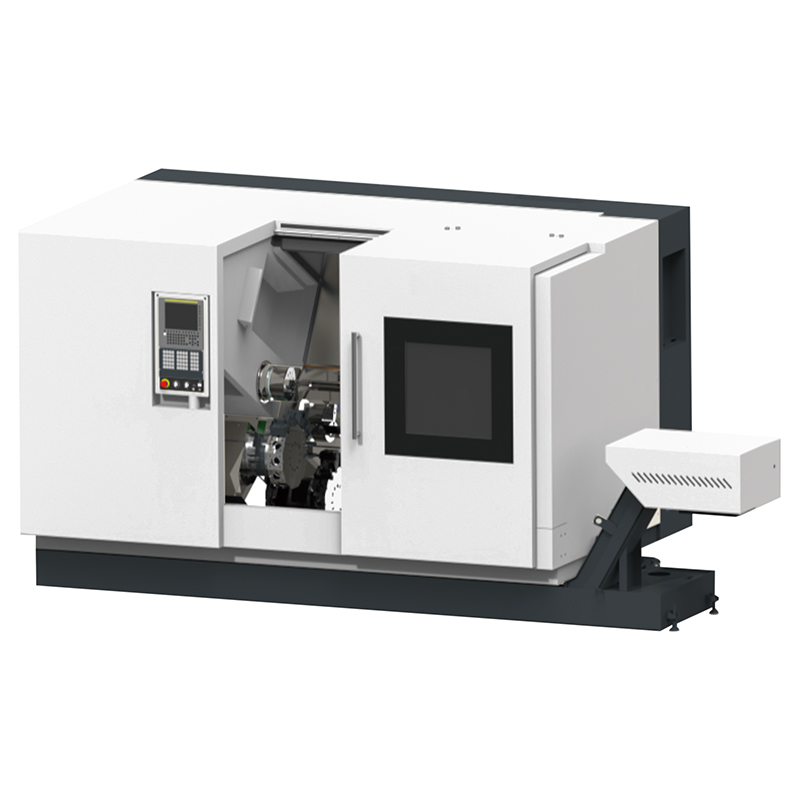

Swiss Technology, Dual Spindles And Dual Powered Tool Turrets, With Orthogonal Y Axes
Incorporating the design philosophy of Swiss SCHAUBLIN structures, the 60°steep slant bed provides superior geometric stability and operational ergonomics.
The seven-axis control scheme with an orthogonal Y-axis exhibits perfect spatial trajectories when handling medical titanium implants and aerospace precision valve blocks.
Featuring top-tier THK ball screws/ guideways and German SAUTER turrets, it is built for high-end users pursuing world-class precision.
■ 7 Axes universal turning center
■ Adopt similar structure as SWISS SCHAUBLIN, bed adopt 60°slant design, high rigidity, high accuracy
■ Most parts adopt GERMANY/JAPAN/TAIWAN brand
■ Adopt modularization design, has strong extended function, can extend to 3& 4 tool turrets
■ Main spindle and sub-spindle adopt high precision electro-spindle unit, big output torque, rapid start-stop speed
■ Adopt THK brand ROLLER type linear guideway and ball screw
■ Dual tool turrets adopt 12T GERMAN SAUTER(GPM) brand powered tool turret with orthogonal Y axes
■ Sub-spindle placed on separate guideways, is fully programmable by M code. Can be also moved in JOG mode by buttons on control panel
■ Adopt 15" big screen for FANUC controller
