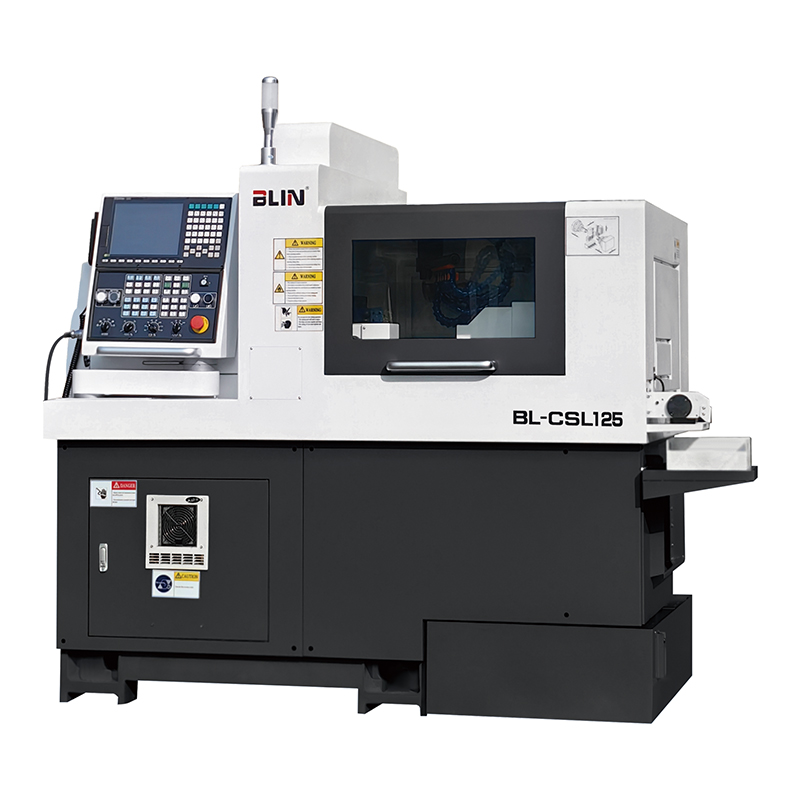

Taiwan Technology, Dual Spindles And Single Tool Turret, With Slant Interpolation Y Axes
Both main and sub-spindles utilize high-precision built-in electro-spindle units for rapid start-stop and smooth operation, ensuring extreme geometric accuracy on both ends.
Equipped with a BMT45 powered turret and interpolation Y-axis, it achieves seamless switching between turning, milling, drilling, and tapping within a highly compact space.
Perfectly suited for precision double-sided machining of smart wearables and high-end instrument parts, the first choice for customers seeking ultimate coaxiality.
■ Adopt TAIWANESE technology, designed by TAIWANESE engineer, most parts adopt GERMANY/JAPAN/TAIWAN brand
■ Similar structure as JAPANESE machine,bed adopt flat bed, slide board adopt 45°slant design,good machining flexibility
■ Main spindle and sub-spindle adopt high precision electro-spindle unit, big output torque,rapid start-stop speed
■ Can realize main spindle side and sub-spindle sides' meantime machining
■ Adopt BMT45 powered tool turret with interpolation Y axes
■ Adopt modularization design, has strong extended function, easy for various especial configuration choice
■ Adopt HT300 resin sand cast iron, after aging treatment and FEA analysis, small distortion, good torsional strength, good heat stability
■ Base adopt multilayer strengthening rib, ensure bed's strength and stability
■ Adopt high precision pre-stretched ball screw, coupled with motor directly by linkager, high transmission rigidity, can realize high precise turning
■ Adopt high precision ROLLER type linear guideway, high rigidity, good accuracy holding, suitable for heavy loading and precise machining

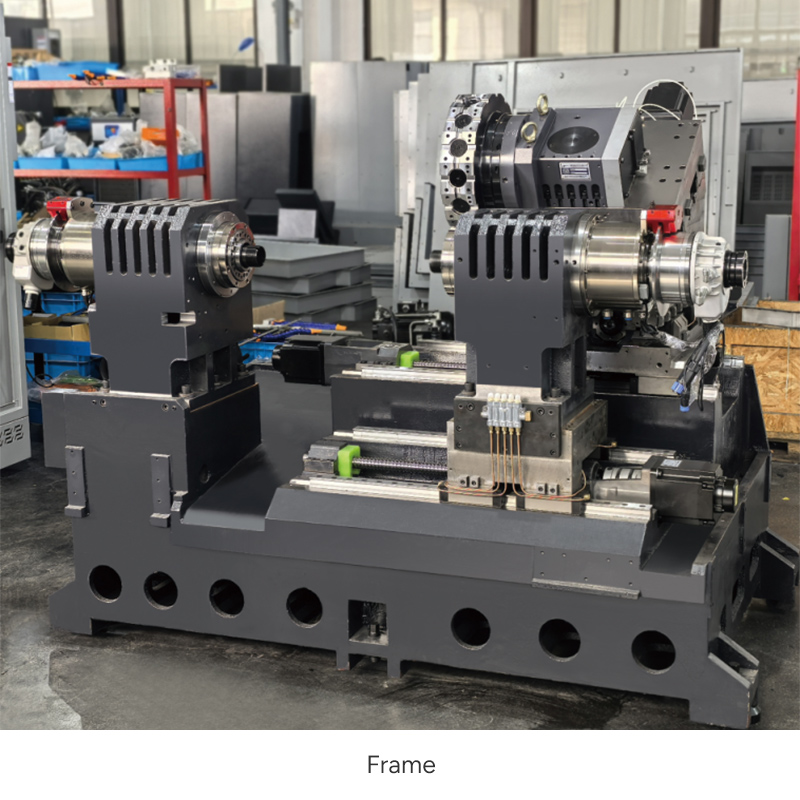

Frame

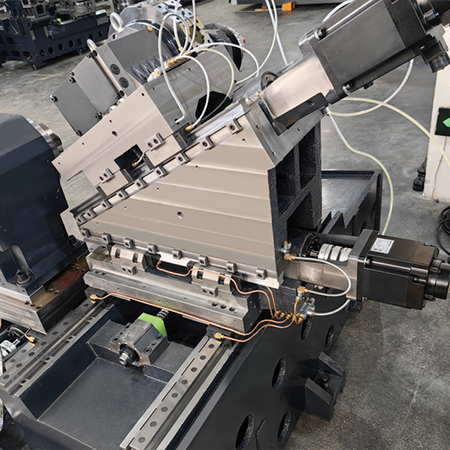

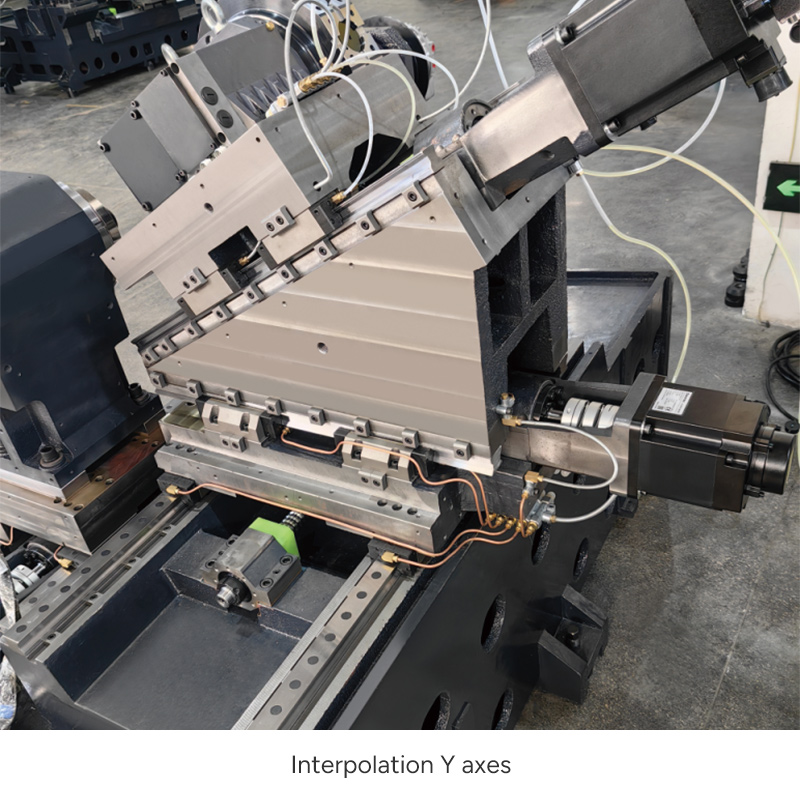

Interpolation Y axes

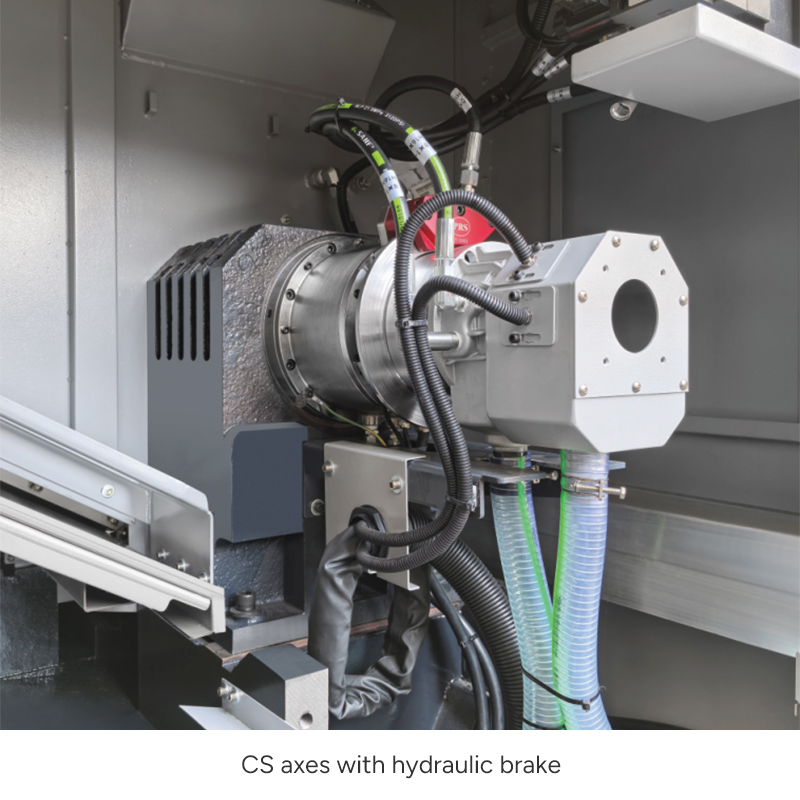

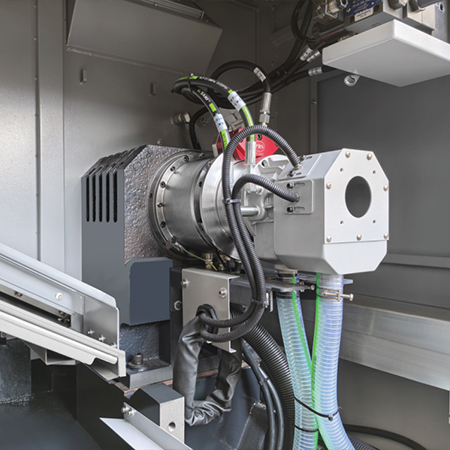

CS axes with hydraulic brake

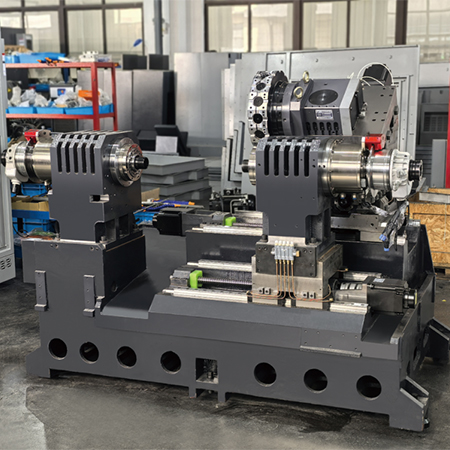

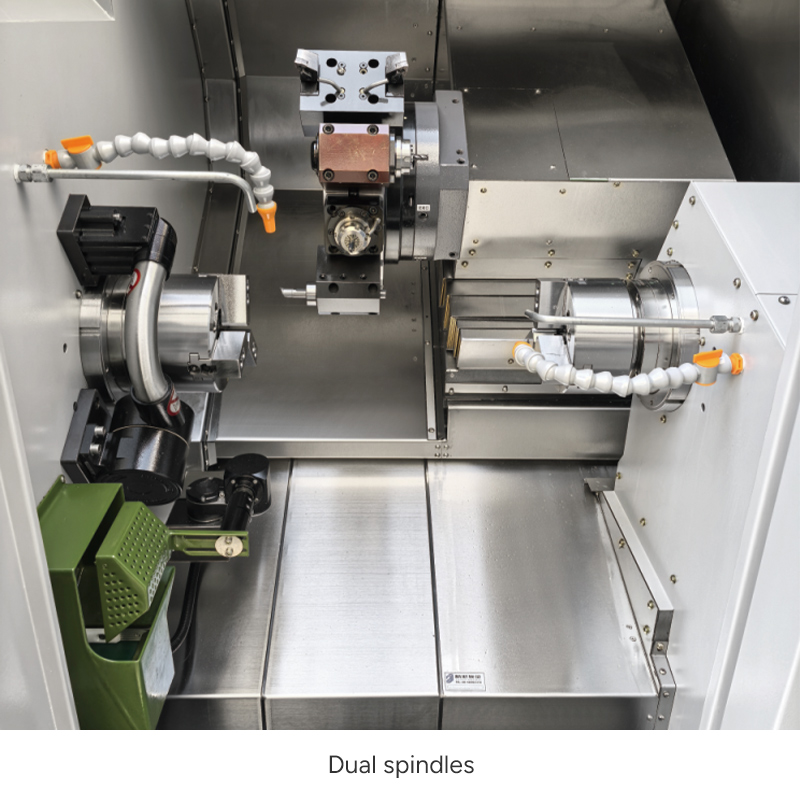

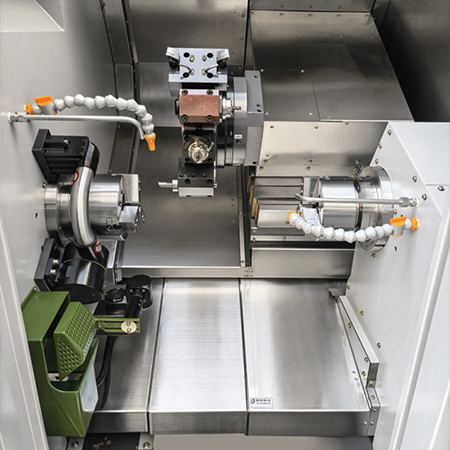

Dual spindles

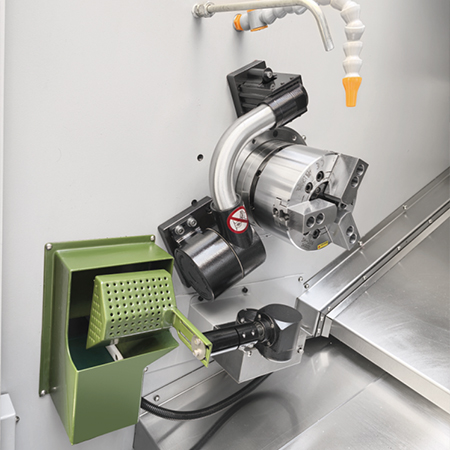

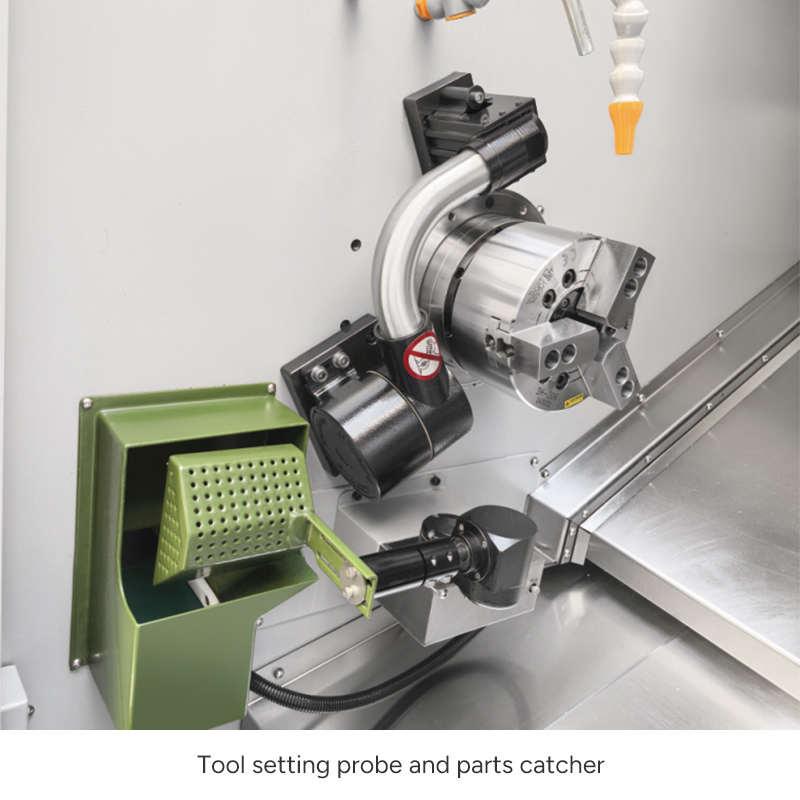

Tool setting probe and parts catcher

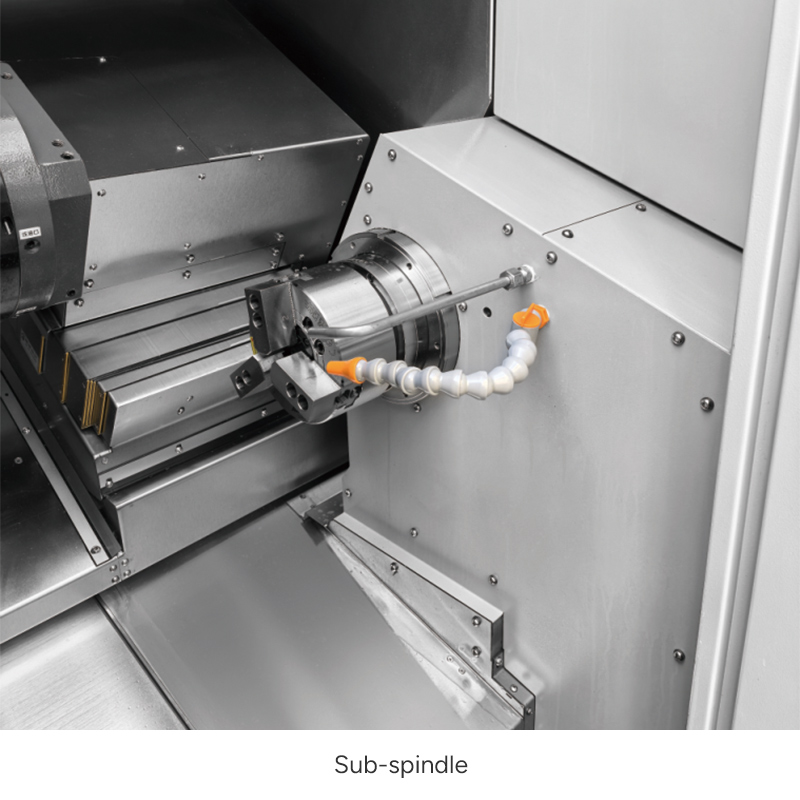

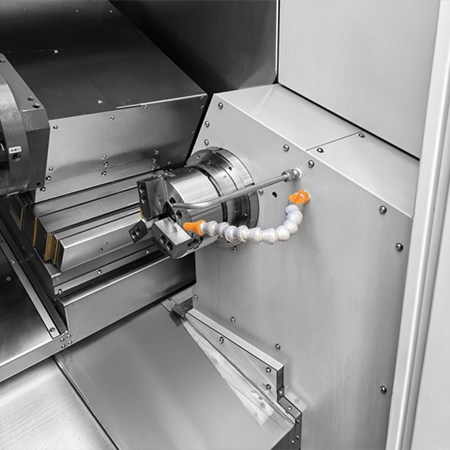

Sub-spindle

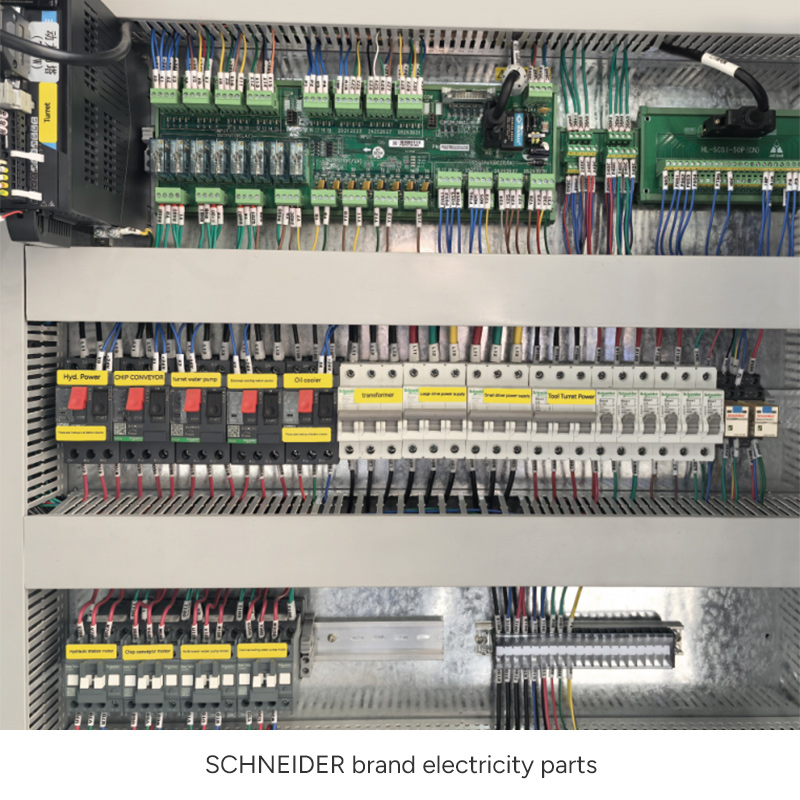

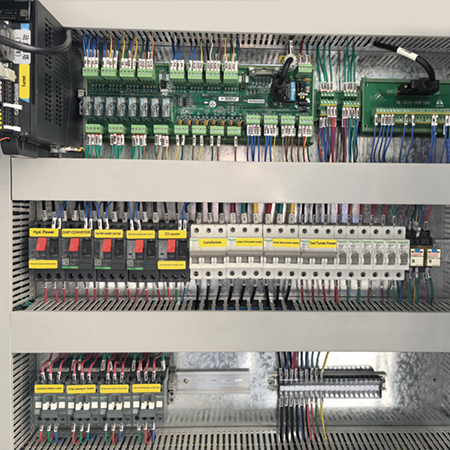

SCHNEIDER brand electricity parts

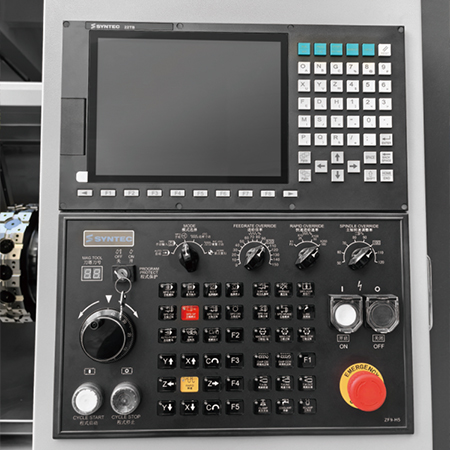

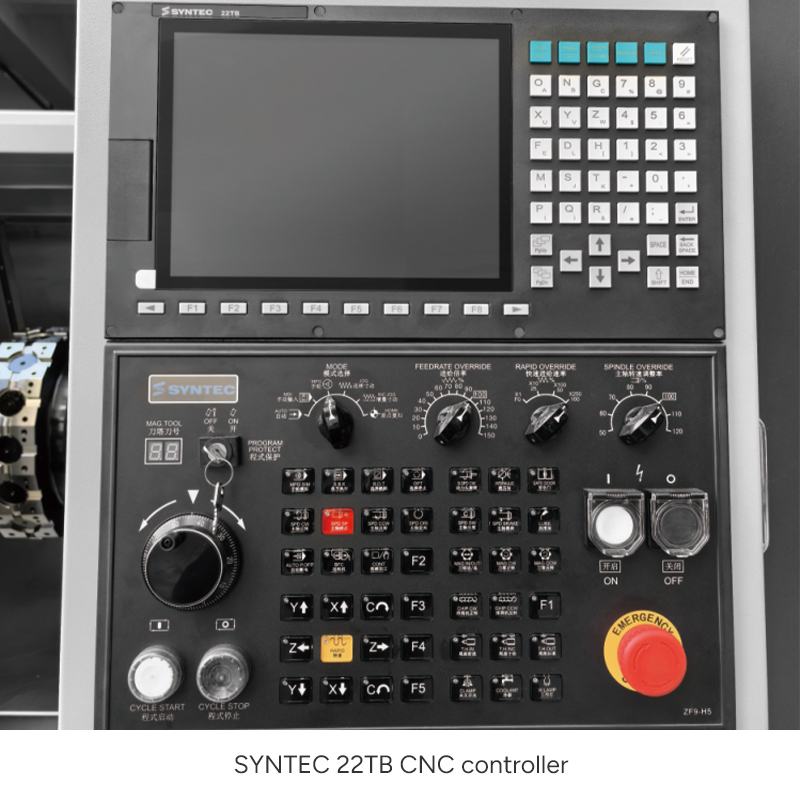

SYNTEC 22TB CNC controller
