NINGBO BLIN MACHINERY CO., LTD.

Japanese Technology, Dual Spindle, 5/6 Axes, Heavy-Duty Type

The "H" series is the heavy-duty evolution of the BLIN Swiss-type lathe, specifically designed for high-rigidity requirements and complex 5/6-axis machining. This series is the ideal choice for demanding materials and complex geometries.

● Advanced 6-Axis Linkage: The CSL206H and 266H models feature a Y2 axis, enabling complex back-end machining and multi-axis coordination.

● Enhanced Structural Rigidity: Utilizing heavy Meehanite cast iron, this series minimizes vibration during heavy cutting, supporting a repeat accuracy of 0.003mm.

● Powerful Dual Spindles: Features high-precision electro-spindles with (Syntec) power, designed to handle tougher alloys and larger removal rates.

● Comprehensive Tooling: Supports a wide array of radial and axial live tools, allowing for intricate face and side operations.

Taiwan Technology, 6"/8" Chuck, 16t Powered Tool Turret With Slant Interpolation Y Axes

Innovatively combines a 15°slant bed with a 30°slant interpolation Y-axis to minimize tool interference and significantly enhance machining stability.

The 16-station large-capacity powered turret, paired with high-speed servo tool indexing, demonstrates extraordinary efficiency for mass-producing parts with complex geometries.

An ideal choice for robot reducer components and precision mechanical parts aiming for"turning instead of milling"and process integration.

Japan Technology, 8"/10" Chuck, 8t/12t Tool Turret, Heavy-Duty Type

● Core Positioning: A heavy-duty center optimized for hard materials and deep-cutting conditions.

● Key Parameters: 8/10-inch chuck, 15kW high-power motor.

● Technical Highlights: Inspired by Mazak-style structure, combining heavy-duty roller guideways with high-torque spindles for superior anti-vibration performance.

● Target Applications: EV motor shafts and construction machinery pins where both efficiency and tight tolerances are critical.

Japanese Technology, Dual Spindle, 5/6 Axes

As the "Titan" of the BLIN lineup, this series is engineered for large-scale precision machining with a maximum bar capacity of 32/38mm, it offers unparalleled stability for heavy-duty applications.

● Maximum Capacity: Specially designed for larger slender axles, supporting bar diameters up to 32mm (CSL325/326) or 38mm(CSL385/386).

● Extreme Stability: The massive Meehanite cast iron body and JAPAN THK high-precision guideways ensure stable cutting even at maximum load.

● High-Power Performance: Equipped with a electro-spindle and powerful radial live tools to handle large diameter drilling and milling.

● Versatile 6-Axis Configuration: CSL326/386 models include a Y2 axis as standard configuration for sophisticated synchronized machining.

Taiwan Technology, 6"/8"/10"Chuck, 12t Tool Turret, Hydraulic Programmable Tailstock

A 45°mono-block slant bed paired with large ROLLER-type heavy-duty guideways balances the strength needed for heavy roughing with the delicacy required for finishing.

The combination of a powerful hydraulic programmable tailstock and CS-axis/powered turret provides stable support for medium-to-large valve bodies and pump components.

Widely serving the fluid control, agricultural machinery, and construction machinery industries as a reliable workhorse for medium-sized, heavy-load parts.

Japan Technology, 10"/12"/15" Chuck, 12t Tool Turret, Heavy-Duty Type, Linear Guideway

● Core Positioning: Dedicated to heavy-duty turning of large-scale workpieces with Linear/Box guideway options.

● Key Parameters: 10/12/15-inch chuck options, spindle bore diameter up to 127mm.

● Technical Highlights: The BOX guideway version provides exceptional vibration dampening for superior surface quality during heavy-duty cutting.

● Target Applications: Heavy-load continuous operations for valves, pumps, and heavy-duty truck components.

Awan Technology, 8" Chuck, 12t Powered Tool Turret With Interpolation Y Axes, Servo Programmable Tailstock

Built strictly to Taiwanese and Japanese premium standards, featuring a German SAUTER powered turret and heavy-duty roller guideways for top-tier performance.

The 30°slant interpolation Y-axis provides exceptional resistance to lateral cutting forces, maintaining a superior surface finish even during heavy-duty turn-mill operations.

Engineered for high-entry-barrier industries like aerospace and medical devices, handling difficult-to-machine materials like high-alloy steel with ease.

Japan Technology, 10"/12"/15"Chuck, 12t Tool Turret, Heavy-Duty Type, Box Guideway

● Core Positioning: Dedicated to heavy-duty turning of large-scale workpieces with Linear/Box guideway options.

● Key Parameters: 10/12/15-inch chuck options,spindle bore diameter up to 127mm.

● Technical Highlights: The BOX guideway version provides exceptional vibration dampening for superior surface quality during heavy-duty cutting.

● Target Applications: Heavy-load continuous operations for valves,pumps,and heavy-duty truck components.

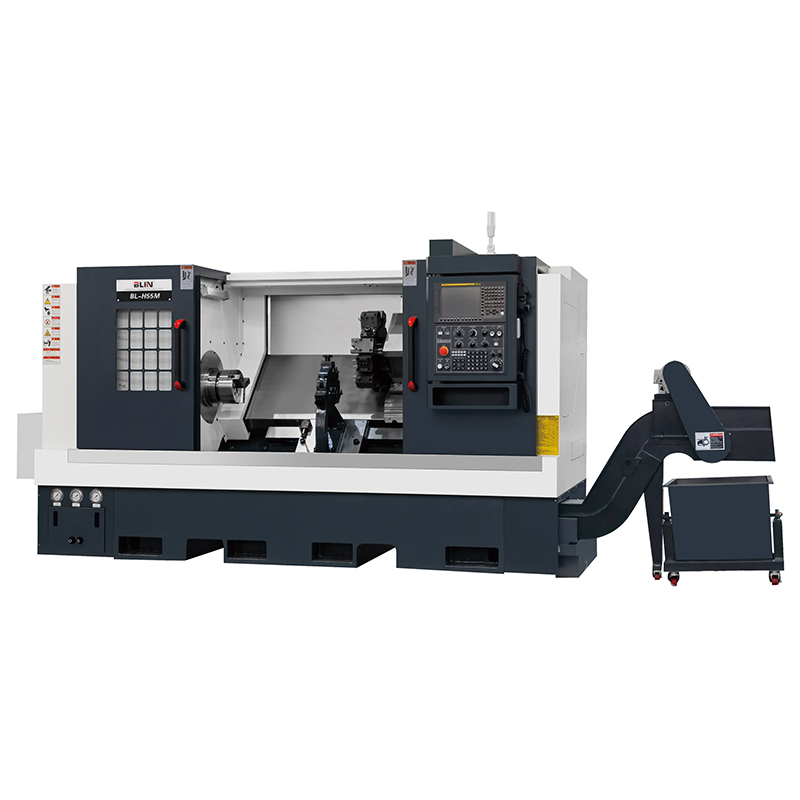

Taiwan Technology, 8"/10"/12" Chuck, Heavy-Duty Type, Roller Type Linear Guideway

Stroke options range from 600mm to 2000mm, tailored for medium-to-long heavy-load shafts, demonstrating excellent spatial adaptability.

The unique 15°slant bed and slant Y-axis technology of the H55Y model make long-stroke turn-mill machining of large complex parts simple, efficient, and precise.

With its exceptional load-bearing capacity and vibration resistance, it serves as the core processing platform for industrial long shafts, conveyor rollers,and energy components.

Japan Technology, 15"/18"/21" Chuck,12t Tool Turret, Heavy-Duty Type, Box Guideway

● Core Positioning: The largest and most rigid ultra-heavy CNC slant bed lathe in the BLIN lineup.

● Key Parameters: Fits up to 21-inch massive chucks, max cutting diameter up to 780mm.

● Technical Highlights: All axes feature widened BOX guideways paired with a high-torque gearbox spindle to challenge machining limits.

● Target Applications: Extra-large parts for oil & gas drilling, mining machinery, and marine engineering.

Taiwan Technology, 10"/12"/15" Chuck, Heavy-Duty Type, Roller Type Linear Guideway

Utilizing 45/55mm ultra-specification heavy-duty roller guideways, with a maximum swing diameter of 650mm and machining lengths extendable up to 3000mm.

Powerful spindle drive and a 12-station heavy-duty turret easily handle the rough machining tasks of large-scale construction machinery and oil extraction tools.

For parts with high inertia, its special tailstock box-guideway structure provides unparalleled radial support rigidity.

Taiwan Technology, 10"/12"/15" Chuck, Heavy-Duty Type, Box Gudieway

Utilizing a full Box-way structure with fine manual scraping, it excels in vibration absorption and high-torque output for heavy cutting.

An optional ZF two-speed gearbox provides explosive torque to easily handle the cutting of high-hardness materials for mining machinery and large oil casings.

It serves as the most stable and powerful heavy-duty processing foundation for large castings, forgings, chemical flanges, and difficult-to-machine alloys.
