NINGBO BLIN MACHINERY CO., LTD.

Dual Spindle, Dual Gang Tools

Innovative 90°vertical slant bed layout combined with dual spindles and dual gang-tool structures, enabling fully automated synchronous machining of front and back sides.

The seamless handover between main and sub-spindles eliminates manual intervention and reduces clamping errors, offering over double the efficiency of single-spindle machines.

Provides an ultimate automated experience of"raw material in, finished product out"for ultra-large-scale production parts like spark plugs and fuel nozzles.

Taiwan Technology, Dual Spindles And Single Tool Turret, With Slant Interpolation Y Axes

Both main and sub-spindles utilize high-precision built-in electro-spindle units for rapid start-stop and smooth operation, ensuring extreme geometric accuracy on both ends.

Equipped with a BMT45 powered turret and interpolation Y-axis, it achieves seamless switching between turning, milling, drilling, and tapping within a highly compact space.

Perfectly suited for precision double-sided machining of smart wearables and high-end instrument parts, the first choice for customers seeking ultimate coaxiality.

Taiwan Technology, Dual Spindles And Dual Tool Turrets, With Slant Interpolation Y Axes

Configured with dual spindles and dual turrets (BMT55+VDI20), supporting simultaneous cutting on both spindles to maximize the machine's output potential per unit.

Fusing advanced Taiwanese craftsmanship with modular design, it can expand processing functions according to industry needs, offering extreme flexible production capacity.

Provides an efficient solution for integrated parts with tedious processes, such as commercial vehicle and agricultural machinery components, with single-clamping, full-process completion.

Swiss Technology, Dual Spindles And Dual Powered Tool Turrets, With Orthogonal Y Axes

Incorporating the design philosophy of Swiss SCHAUBLIN structures, the 60°steep slant bed provides superior geometric stability and operational ergonomics.

The seven-axis control scheme with an orthogonal Y-axis exhibits perfect spatial trajectories when handling medical titanium implants and aerospace precision valve blocks.

Featuring top-tier THK ball screws/ guideways and German SAUTER turrets, it is built for high-end users pursuing world-class precision.

Taiwan Technology, Dual Spindles And Dual Powered Tool Turrets, With Slant Interpolation Y Axes

Benchmarking the NAKAMURA-TOME structure, the dual 16-station powered turrets and dual electro-spindles represent the highest level of multi-axis composite machining.

The abundant tool stations effectively solve the multi-process challenges of extremely complex parts like automotive gearbox gear shafts, significantly reducing auxiliary tool-change time.

Coupled with powerful Y-axis interpolation, it completes all turn-mill processes from blank to high-precision finished product on a single machine.

A "Versatile Expert" balancing high speed with precision.

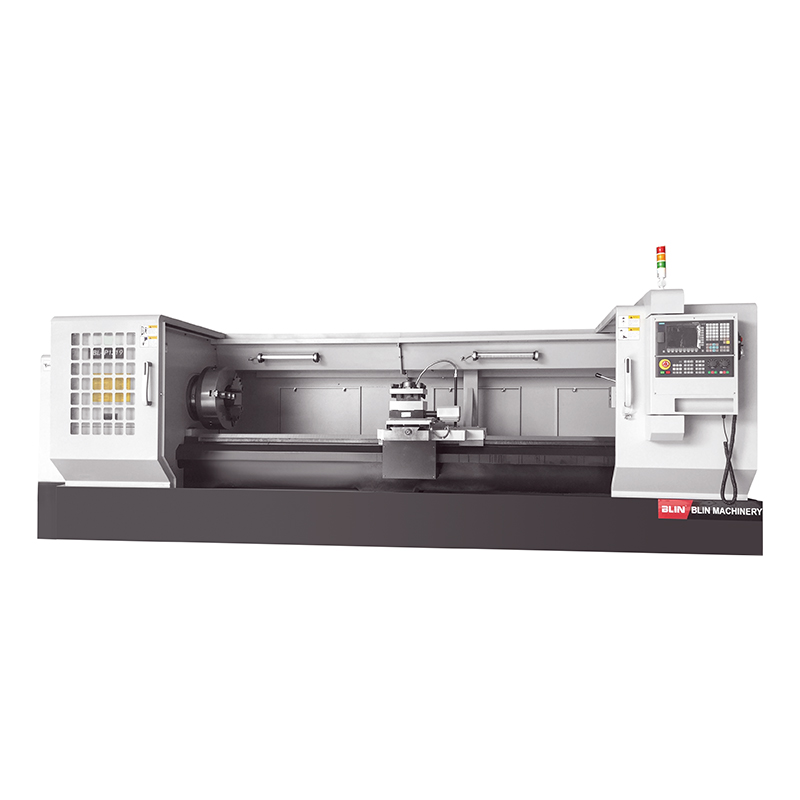

● Machining Capacity: Specifically designed for small-to-medium pipes with diameters from 130mm to 280mm.

● High-Efficiency Performance: Maximum spindle speeds up to 720 RPM, significantly boosting mass production efficiency.

● Loading Stability: 3 to 4-ton maximum loading capacity ensures stable machining for medium-duty workpieces.

● Flexible Configuration: Equipped with dual manual chucks as standard; optional 6 or 8-station turrets for complex multi-process tasks.

● Application Scenarios: Widely used in routine oil & gas pipe maintenance, geological drill pipe processing, and general shaft component manufacturing.

A "Hardcore Workhorse" for large-bore and extreme-weight challenges.

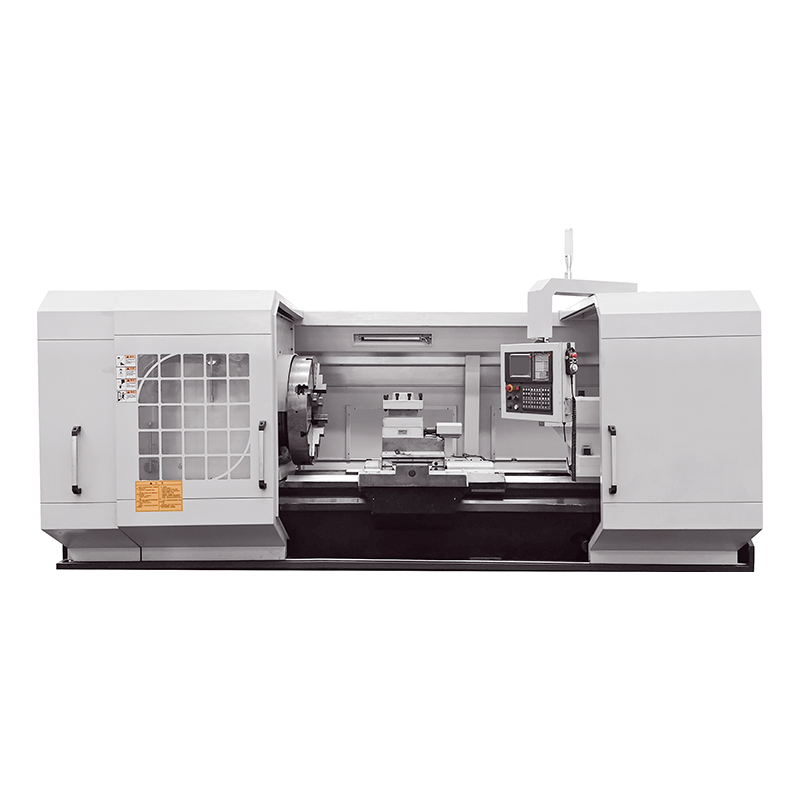

● Extra-Large Spindle Bore: Features a massive 280mm to 640mm spindle bore to handle large-scale piping with ease.

● Heavy-Duty Structure: Guideway widths from 755mm to 1100mm with a maximum loading capacity of up to 10 tons.

● Superior Rigidity: Built with premium resin sand cast iron and aged for stability; ultrasonic frequency-hardened guideways ensure long-term precision under heavy loads.

● Powerful Torque: Equipped with high-power spindle motors (22kW to 37kW) to meet the demands of heavy-duty cutting.

● Application Scenarios: Engineered for precision machining of deep-sea drilling tools, large-scale oil/gas trunk lines, and ultra-heavy industrial shaft components.

● Core Description: A mid-sized general-purpose lathe balancing heavy cutting capability with operational flexibility.

● Key Selling Points: 400mm guideway width paired with an independent or 3-step gear spindle, providing exceptional rigidity in a compact footprint.

● Applications: General mechanical parts, vocational training, and automotive components.

● Core Description: Heavy-duty mono-block bed lathe designed for workpieces up to 6 tons.

● Key Selling Points: 755mm ultra-wide guideways and 130mm spindle bore for integrated rough and fine machining of extreme parts.

● Applications: Steel mill rollers, chemical pressure vessels, and large rotor shafts.

● Core Description: Industrial-grade heavy-duty lathe with extended processing spans.

● Key Selling Points: Guideway widths up to 550/600mm and machining lengths up to 6 meters; supports workpieces weighing 3-4 tons.

● Applications: Textile machinery, mining equipment, and construction formwork shafts.

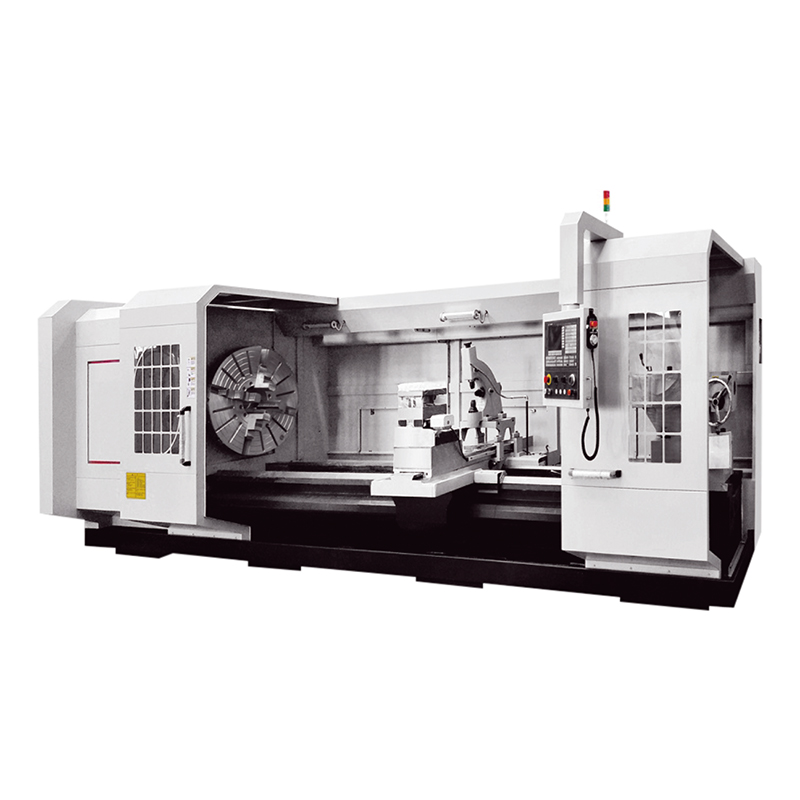

● Core Description: An ultra-heavy-duty CNC platform with a loading capacity of up to 30 tons.

● Key Selling Points: 1100mm wide base and 37kW powerful spindle; the ultimate solution for workpieces 2m in diameter and 10m in length.

● Applications: Shipbuilding, nuclear power components, and mega-scale engineering machinery.

● Core Description: A heavy-duty powerhouse integrating a large spindle bore with superior rigidity.

● Key Selling Points: 560mm guideway width and 105mm spindle bore; 3-step gearbox provides a massive 1265Nm torque.

● Applications: Large pipe processing, construction machinery bushings, and oil casings.
